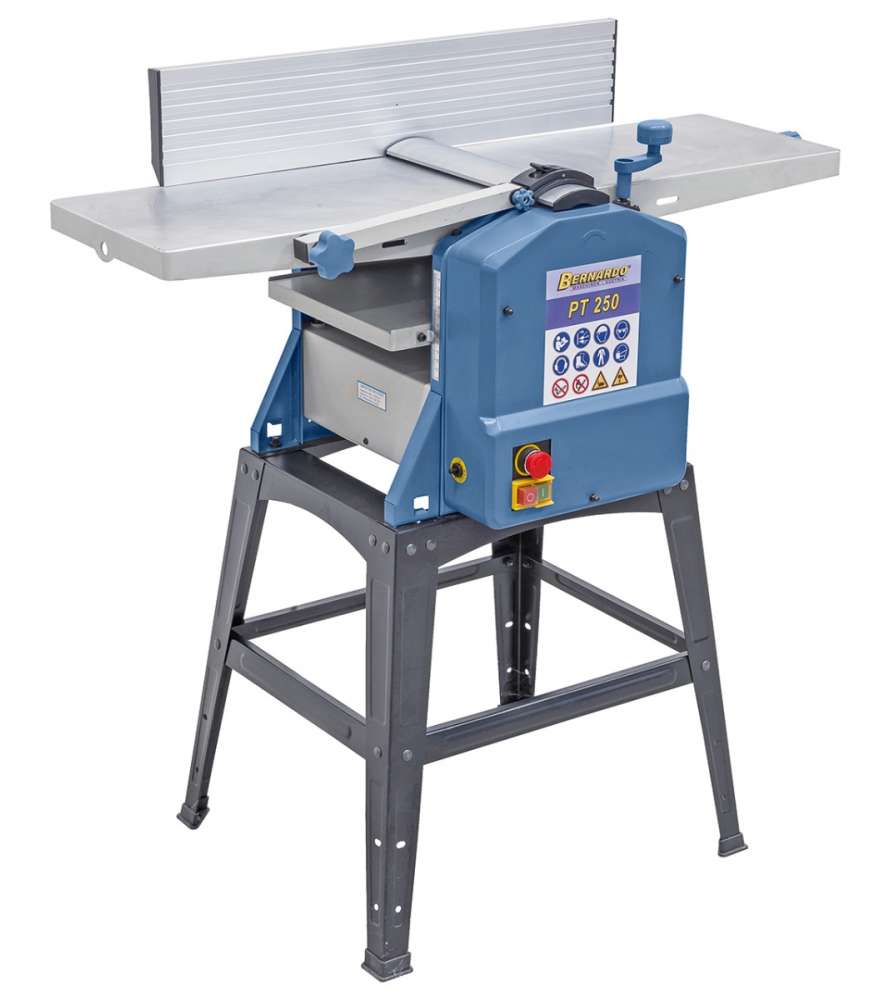

General description of the planer thicknesser Bernardo PT250:

• CE compliant shaft protection for maximum safety
• IP 54 lockable on / off switch with undervoltage coil
• Ideal for hobbyists and DIY enthusiasts
• Quick and easy adjustment of the pass removal
• Perfectly flat aluminum planing tables for a precise result
• Combined suction hood can be used for either planing or planing
• Stable guide tiltable from 90 ° to 45 °
• Precision shaft with 2 HSS irons
• Powerful motor for optimum planing
• Compact and easy to transport, ideal for assembly operations

Technical characteristics of the thicknesser planer Bernardo PT250:

Jointer

• Cutting width: 255 mm
• Table length: 925 mm
• Shaft speed: 8500 rpm
• Number of irons: 2
• Shaft diameter: 50 mm
• Guide: 620 x 125 mm
• Tilt guide: 90 ° to 45 °
• Maximum pass removal: 2 mm

Planer

• Table length: 380 mm
• Planer width: 250 mm
• Planing height, min / max: 5 - 120 mm
• Maximum pass removal: 2 mm
• Feed speed: 7 m / min
• ø suction nozzle: 75 mm

General

• Continuous power S1 100%: 1.5 kW (2.0 hp)
• Power S6 40%: 2.1 kW (2.8 hp)
• Voltage: 230 V
• Dimensions (L x W x H): 970 x 460 x 990 mm
• Weight (approx.): 30 kg
