General description of the Bernardo AD260 :

• Planing tables tilt to the back of the machine to keep space requirements to a minimum
• Precisely bedded, smooth running 3-knife cutterblock guarantees optimal results
• Integrated, tiltable dust hood, extraction outlet 100 mm
• Simultaneous tilting of planing tables to achieve maximum comfort
• Thicknessing table feed can be switched off when planing

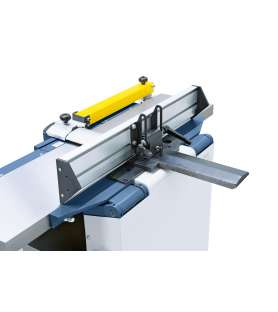

• Hard-anodized aluminium planing fence, tiltable from 90° to 45°
• Thicknessing table with central column and support allow precise planing
• Torsion-free, cast iron planing tables guarantees best results
• Numerous safety devices: On/Off switch with undervoltage release, cutterblock cover in accordance with CE, limit switch to avoid accidental machine start

Technical characteristics of the Bernardo AD260 :

jointer

• Cutting width: 250mm
• Table length: 1090 mm
• Table height: 835 mm
• Shaft speed: 4000 rpm
• 3 knives 250x30x3.0 mm
• Shaft diameter: 75mm
• Guide: 715 x 130mm
• Tilting guide: 90° to 45°
• Maximum removal per pass: 3 mm

Planer

• Table length: 600 mm
• Planer width: 250 mm
• Planing height, min/max: 5 - 185 mm
• Removal per pass max: 2.5 mm
• Feed rate: 4.8 m/min
• Ø suction nozzle: 100 mm
• Continuous power S1 100%: 2.0 kW (2.7 hp)
• Power S6 40%: 2.8 kW (3.8 hp)
• Voltage: 230V
• Dimensions (LxWxH): 1150 x 800 x 1000 mm
• Weight (approx.): 173 kg
