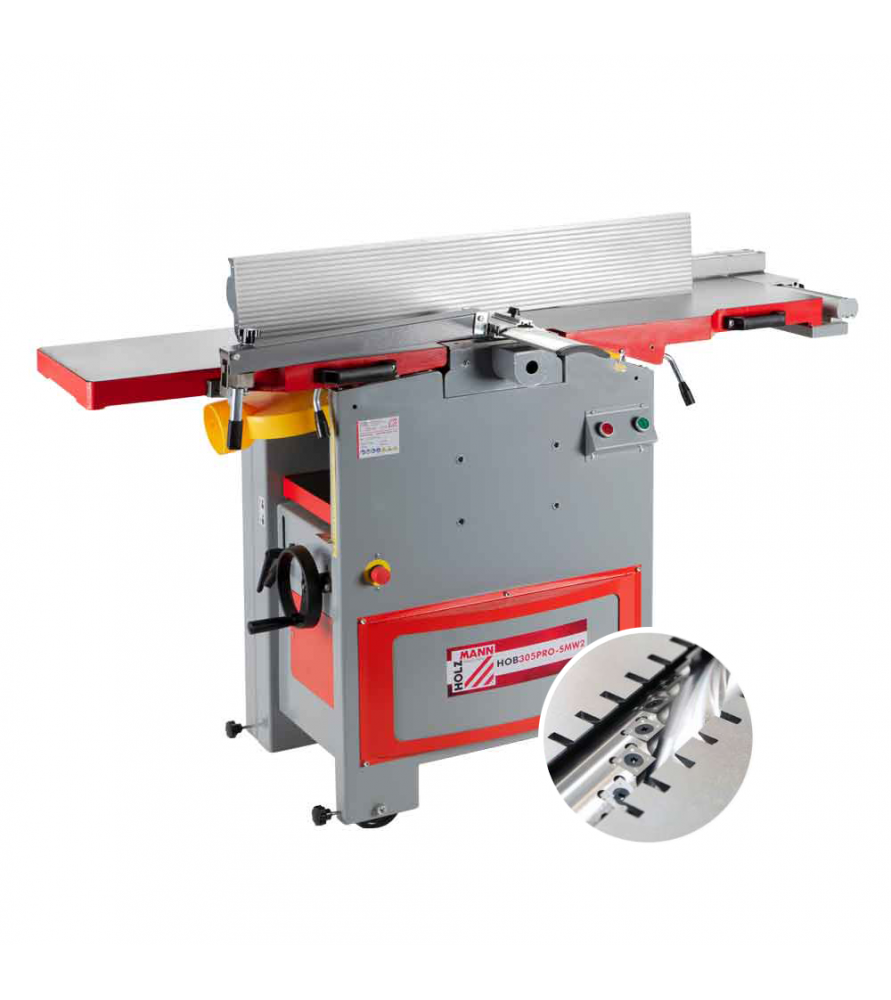

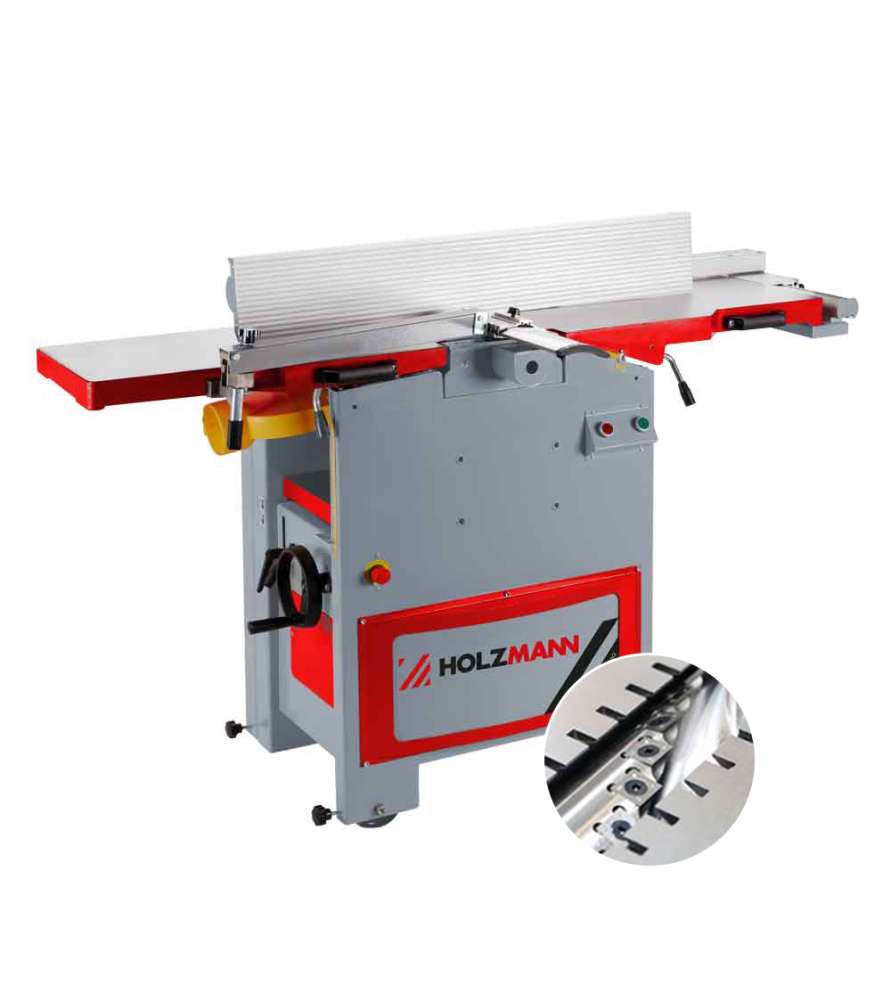

General description of the Holzmann HOB305PROSMW2 planer jointer with helical shaft :

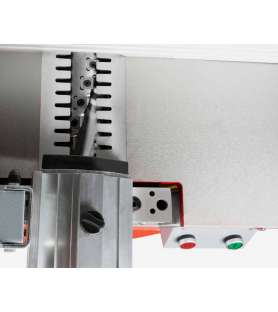

• The helical knife block with HM indexable inserts (24 pieces) guarantees optimum planing results.
• Dimensions: 15 x 15 x 2.5mm (30°)
• The rectified cast iron tables give the machine robustness and precision.
• Handwheel for height adjustment of the thicknessing table, with millimetric system.
• High strength of the drive elements which guarantee long-lasting and trouble-free work.
• Spiral and ribbed training roller.
• Quality manufacturing, in particular by the technique of laser cutting.
• Large diameter cutter shaft for optimum contact pressure.
• Machine equipped with displacement system.
• width planing width: 304 mm, Planing width: 300mm

The Holzmann HOB305PROSMW2 planer jointer with helical shaft comes with :

Planer guide, handwheels, helical shaft, displacement system.

Technical characteristics of the planer thicknesser Holzmann HOB305PROSMW2 with helical shaft :

Planer

• Planing table dimensions 1512 x 400 mm
• Height of planing table: 901 mm
• Maximum depth of cut: 3 mm
• Planer guide dimensions: 1000 x 160 mm
• Planer guide inclination: 90°-45°

Thicknesser

• Dimensions of the table: 585 x 300mm
• Maximum depth of cut: 3 mm
• Planing height: 225 mm
• Ø Shaft: 74 mm
• Shaft rotation speed: 4000 rpm
• Number of irons: 24

General

• Gross weight: 292 kg
• Net weight: 258 kg
• Motor power S1: 2200 W
• Voltage: 230V / (50Hz)
• Forward speed: 5.5 m/min
• Suction nozzles: 100 mm
• Machine dimensions: 1665 x 575 x 930mm
• Piece sizes: 6 / 225
