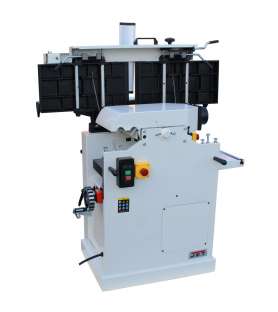

General description of the Planer thicknesser JET JPT-F260-T - 400V :

• Possibility to unfold the table twice for a change in just a few seconds from grinding mode to planing mode; the stopper must not be removed
• Planed jointer tables made of high-end gray cast iron guarantee optimal sliding capacity of the parts
• 3-knife shaft allows for fast processing and better planing results
• Large planer stop, made of aluminium, 45° tiltable, precision machined, stable guided
• Torsion-resistant one-piece machine housing for long-lasting precision
• Advance can be disabled
• 2 x emergency stop button for your safety
• Comes with digital height indicator

The Planer thicknesser JET JPT-F260-T - 400V comes with :

• Straightening guide assembly.
• Cutting cylinder protection
• Iron setting gauge
• User manual
• Nomenclature (list of spare parts)

Technical characteristics of the Planer thicknesser JET JPT-F260-T - 400V :

• Power: 400V / 2.5kW S1
• Cutting head rotation: 5000 rpm
• Feed rate: 6.0 m / sec
• Max. surfacing width : 258mm
• Height thickness: 5 – 190 mm
• Max depth cutting edge: 3.0mm
• Max Thickness Depth cutting edge: 4.5mm
• Number of knives: 3
• Planer blades: 260 x 25 x 3 mm
• Table thickness: 600 mm
• Table thickness: 1100 mm
• min thickness length : 150mm
• Positioning stop size: 1100 x 150 mm
• Positioning stop inclination: 45° / 90° deg.
• Dust port: 100 ø-mm
• Dimensions / Weight: 1100 x 900 x 1000 mm / 202 kg
