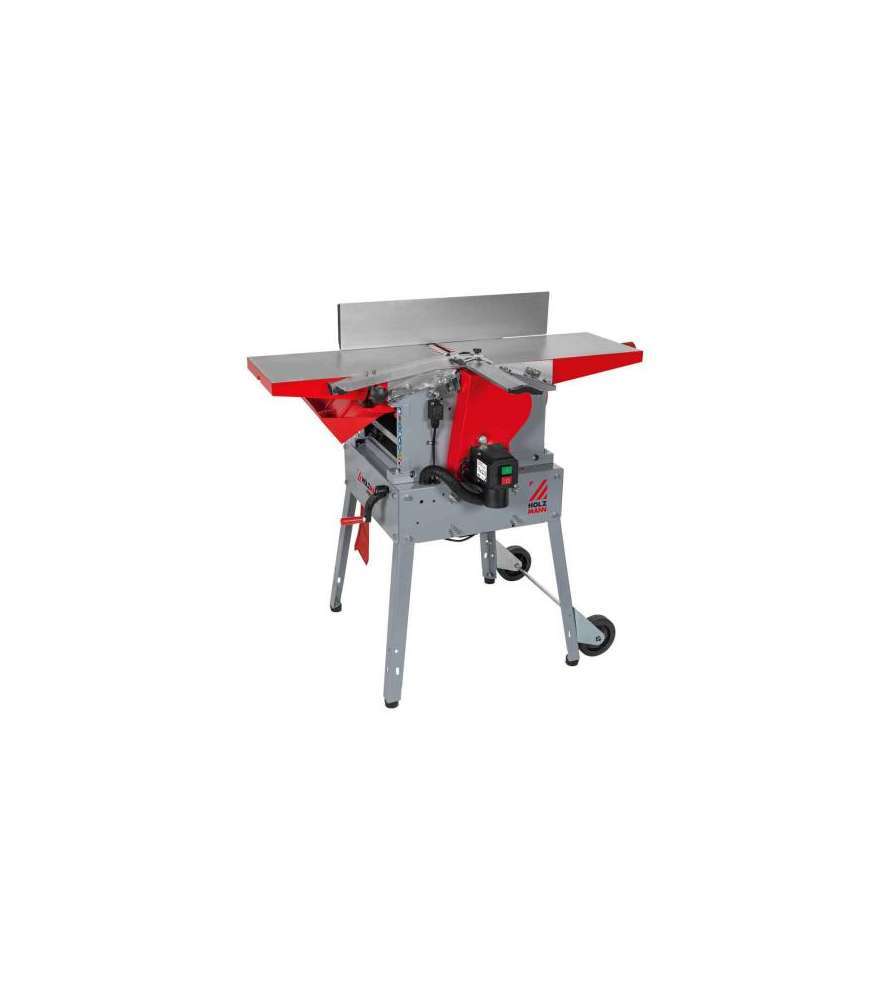

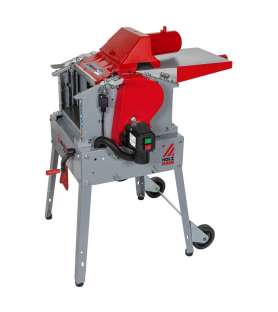

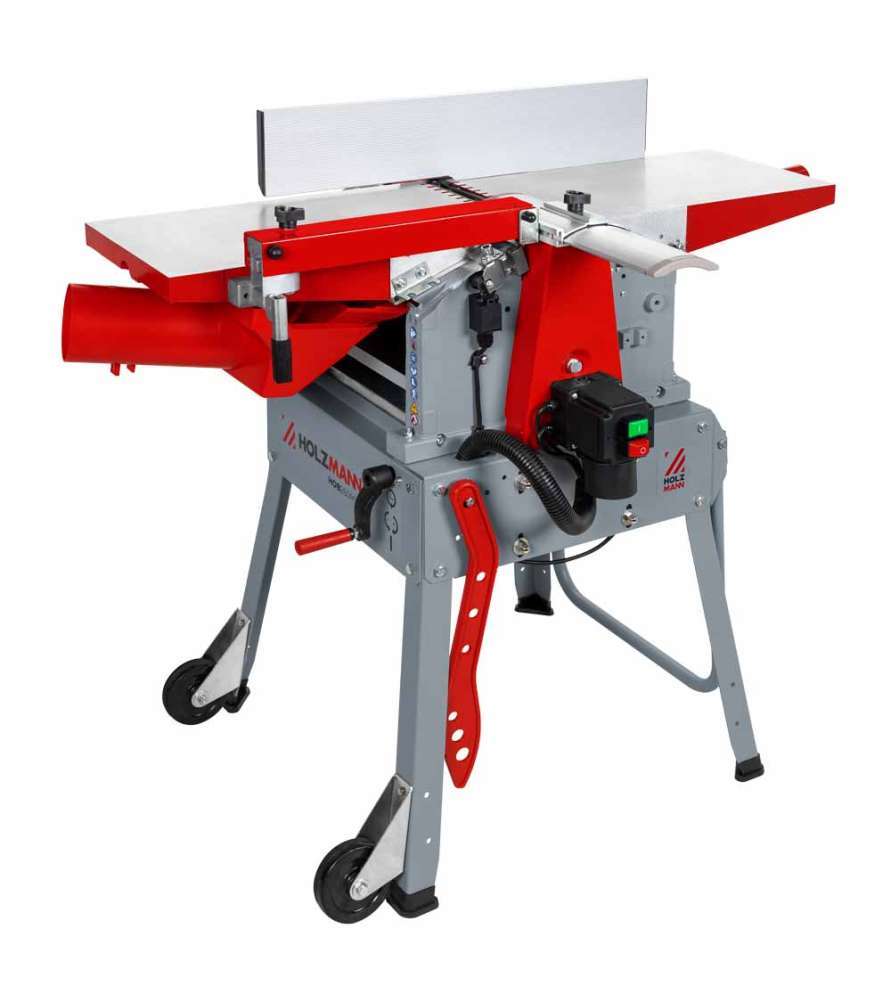

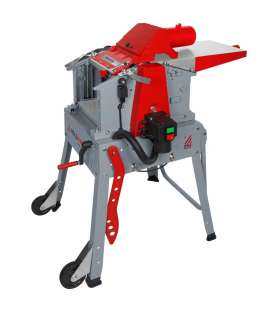

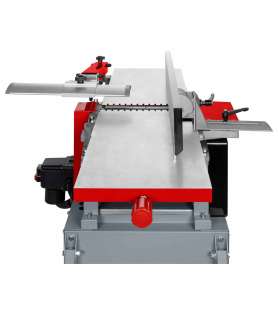

General description of the Holzmann HOB260MINI planer jointer :

• Compact planer/thicknesser
• Easy conversion from jointer to planer
• Solid gray cast iron planing table
• Reversible Planer Blades
• 90°-45° swivel planing fence
• With integrated frame

The Holzmann HOB260MINI planer jointer comes with :

• 2 reversible planer blades (260 x 18.6 x 1.2 mm)

Technical characteristics of the planer jointer Holzmann HOB260MINI :

Jointer :

• Planing width: 260 mm
• Total length jointer tables: 1040 mm
• Max pass: 3 mm
• Planer guide dimensions: 1100 x 150 mm
• Planer fence swivel range: 90-45°
• S6 motor power: 2200 W
• Voltage: 230V / 50Hz
• Feed rate: 5 m/min

Planer :

• Table height: 860 mm
• Suction connection: 100 mm
• Max planing width : 260mm
• Planing table length: 400 mm
• Max pass: 3 mm
• Planing height max. : 160mm
• Shaft diameter: 63mm
• Planer shaft speed: 6500 rpm
• Number of irons: 2
• Sound power level: 102.1 / 99.1 dB(A)
• Sound pressure level: 95.6 / 91.5 dB(A)
• Gross weight: 84 kg
• Net weight: 75 kg
