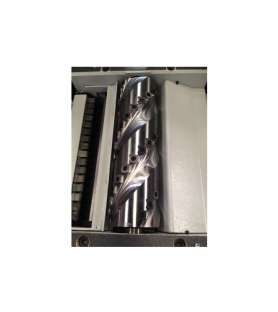

Planer and thicknesser Holzprofi DG410TS with Helical Shaft of European Manufacture - 400V
  • Planer and thicknesser Holzprofi DG410TS with Helical Shaft of European Manufacture - 400V
  • Planer thicknesser Holzprofi DG410TS - 230V
  • Planer thicknesser Holzprofi DG410TS - 230V
  • Planer thicknesser Holzprofi DG410TS - 230V

Planer and thicknesser Holzprofi DG410TS with Helical Shaft of European Manufacture - 400V

6,595.00 € Tax included

Including €2.50 for ecotax

Reference: HJDG410TS/AH-400

The Holzprofi DG410TS 410 mm planer jointer with Helical Shaft of European Manufacture is perfect for the professional, craftsman or regular individual looking for a safe and efficient machine.

Quantity
Contact us to find out the deadline

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The planer thicknesser Holzprofi DG410TS is a professional model!

This machine is dedicated to carpenters and handymen or amateurs aware of the quality of their machines. The long aluminum tilting perpendicular guide is fixed in such a way that it is not necessary to remove it in planing mode. This machine is powerful and stable which provides a high precision work. The large diameter of the central block with direct locking of the table is completed by a guide bar. Anti-friction rollers in the planing table for the DG410TS.

Important recommendation of Probois for many woodworking machines:

  • Before starting always check the inside of the machine, see if the belts are correctly fitted, tighten the bolts, grease the tables, etc. because the different transports cause vibrations.
  • Always use an extension cord of 2.5² wire size
  • The extension must not exceed 10 meters and must not be rolled
  • Provide an electric meter with special fuses starting machine of at least 20A
  • Have a standard electric meter with neutral and earth
  • Always work with a chip vacuum cleaner for your health and machine warranty
  • Always grease the cast iron tables with slip-wood
  • Always work with the protections in place
  • Do not work with blunted or dulled irons it can damage the mechanism, the advance of the planer, break the belt

General description of the planer thicknesser Holzprofi DG410TS:

  • Rectified cast iron tables with vertical opening which makes it easier to change the planing position to the planing position.
  • Thick welded sheet metal frame.
  • The long tilting perpendicular aluminum guide is fixed in such a way that it does not have to be removed to go into planing mode.
  • These machines are powerful and stable which gives a high precision work.
  • The large diameter of the direct locking center shaft of the table is completed by a guide bar.
  • Delivered with mounted and sharpened irons

Technical characteristics of the planer thicknesser Holzprofi DG410TS:

  • Longwall length: 1800 mm
  • Thickness table width: 410 mm
  • Length of the planer table: 700 mm
  • Width. max. : 410 mm
  • Planing height max. : 225 mm
  • Height Reading: Mechanical Counter
  • Blade guide dimensions: 1100x155mm
  • Tilt guide inclination: 0 - 45 °
  • Sun of the tree 100 mm
  • Speed ​​of rotation of the shaft: 4500 rpm
  • Number of cuts : 38
  • Advance speed disengageable: 8 m / min
  • Sun advance rollers: 40 mm
  • Chip taking max. dew: 4mm
  • Chip taking max. planing: 5mm
  • Working height 1050 mm
  • Engine power 400V / 50Hz: 4.0 KW / 5.5CV
  • Sun suction nozzle: 100 mm
  • Overall dimensions: 1520 x 650 x 1050mm
  • Weight: 450 kg

This planer thicknesser Holzprofi DG410TS is a machine dedicated to professionals and amateurs looking for quality equipment!

We recommend to consult us for the delivery time which can vary according to the factory Holzprofi because it can be fast (under 5 days approximately) if it is available in their stocks until 3 weeks if it is currently being sourced.

Good to know: Three-phase machines (3-phase, neutral and earth) are usually delivered without a plug. When mounting, be careful not to connect the wires upside down to avoid damaging the mechanical system! See the correct outlet: three-phase electrical outlet.

VERY IMPORTANT FOR DELIVERY!

The delivery of this very heavy planer jointer (more than 500 kg) requires a big truck with rags! The place of delivery must be provided so that the truck can approach easily. In the case of a delivery location which is difficult to access, we must inform us so that the factory can order a smaller truck but delivery charges will apply for this special request. Delivery charges must be paid before shipment.

The machine arrives in a wooden crate. Our prices do not include assembly or installation. It is advisable to have your electrical installation checked by a professional to make sure that it can support the power of this machine so as not to damage it by an unsuitable meter.
