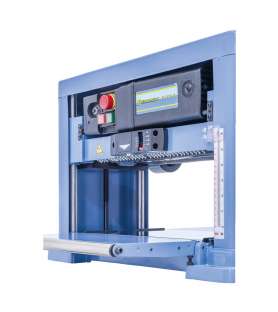

The thicknesser Bernardo TH330S with helical shaft is a compact and easy to transport!

What makes this model ideal for use on construction sites as well.

The advantages of the thicknesser Bernardo TH330S :

• The thicknessing unit, guided by four threads and the rubber coating of the input-output feed roller guarantees the most accurate results.
• Flywheel and graduated scale allow precise adjustment of the thicknessing height.
• Dust cover on the back of the machine.
• Foldable table extension.
• Handles on the side allow easy transport.

Technical specifications of the thicknesser Bernardo TH330S :

• Dimension table with extension mm: 640 x 330
• Planing width mm: 330
• Planing height: 5 -150 mm
• shaft ø mm: 50
• Number of reversible carbide inserts : 30
• Depth of mm: from 0 to 2.8
• Suction diameter: 50
• Speed ​​of rotation rpm: 9500
• 230 V - S1 motor 100%: 1500 W (2.0 HP)
• Engine 230 V - S6 40%: 2100 W (2.8 HP)
• Weight kg: 33
• Dimensions mm: 550 x 650 x 490 mm

The thicknesser Bernardo TH330S comes with:

Manual in English - Service keys - Push.
