Reference: BFS310P-400V

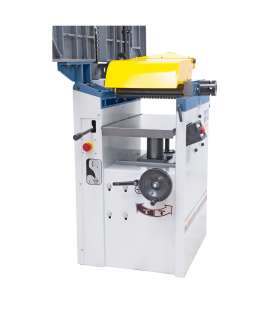

The Bernardo FS310P planer jointer offers an important planing height and is equipped with a mechanical counter for precise adjustment!
Totally secure payment!
Be delivered where you want!
14 days to change your mind!
This machine is dedicated to DIY enthusiasts and amateurs concerned about the quality of their machines. Its planing counter will make positioning at the desired height easier! It offers 235 mm of planing height and has a motor of 2500W at work, 3500W at start-up.
The planing width of this machine and its power require a sufficiently powerful vacuum cleaner in extraction. It is therefore necessary to avoid any vacuum cleaner of less than 2000 m3 / h!
Before starting, always check the inside of your machine, see if the belts are correctly fitted, tighten the bolts, lubricate the tables, etc ... because the various transports cause vibrations.
Always use an extension cord of 2.5² wire size
The extension cord must not exceed 10 meters and must not be rolled up
Provide an electric meter with special machine starting fuses of at least 16A
Have an electric meter up to standards with neutral and earth
Always work with a chip vacuum cleaner for your health and for the warranty of the machine
Always grease cast iron tables with wood glide
Always work with the guards in place
Do not work with blunt or blunt irons, this can damage the mechanism, the planer advance, break the belt
General description of the Bernardo FS310P planer jointer:
Planing tables fold down at the rear of the machine, allowing for space-saving installation
Integrated, hinged chip suction hood - diam. of connection 100 mm
Digital display on the crank graduated to 1/10 mm for precise adjustment of the table height
Anodized aluminum guide, tiltable from 90 ° to 45 °
Powerful motor for optimum planing
Quick and easy adjustment of the pass removal
Simultaneous lifting of the two planing tables for an ultra-fast change from planing to planing
Ergonomic arrangement of the operating elements
Numerous protection devices: on / off switch with undervoltage coil, CE compliant shaft protector, limit switch against inadvertent starting
3 HSS precision shaft
The Bernardo FS310P planer thicknesser is equipped as standard with:
Good to know: Three-phase machines (3 phases, neutral and earth) are generally delivered without plug. When assembling, be careful not to connect the wires backwards to avoid damaging the mechanical system! See the correct outlet: three-phase outlet.
VERY IMPORTANT FOR DELIVERY!
The delivery of this very heavy planer jointer (300 kg) requires a large truck with rag! The place of delivery must imperatively be planned so that the truck can approach easily. In the event of a delivery location that is difficult to access, let us know so that we can order a smaller truck, but delivery charges will then apply for this special request. Delivery charges must be paid before shipment.
The machine arrives in a wooden case. Our prices do not include assembly or installation. Its electrical installation should be checked by a professional to ensure that it can withstand the power of this machine so as not to damage it by an unsuitable meter.
