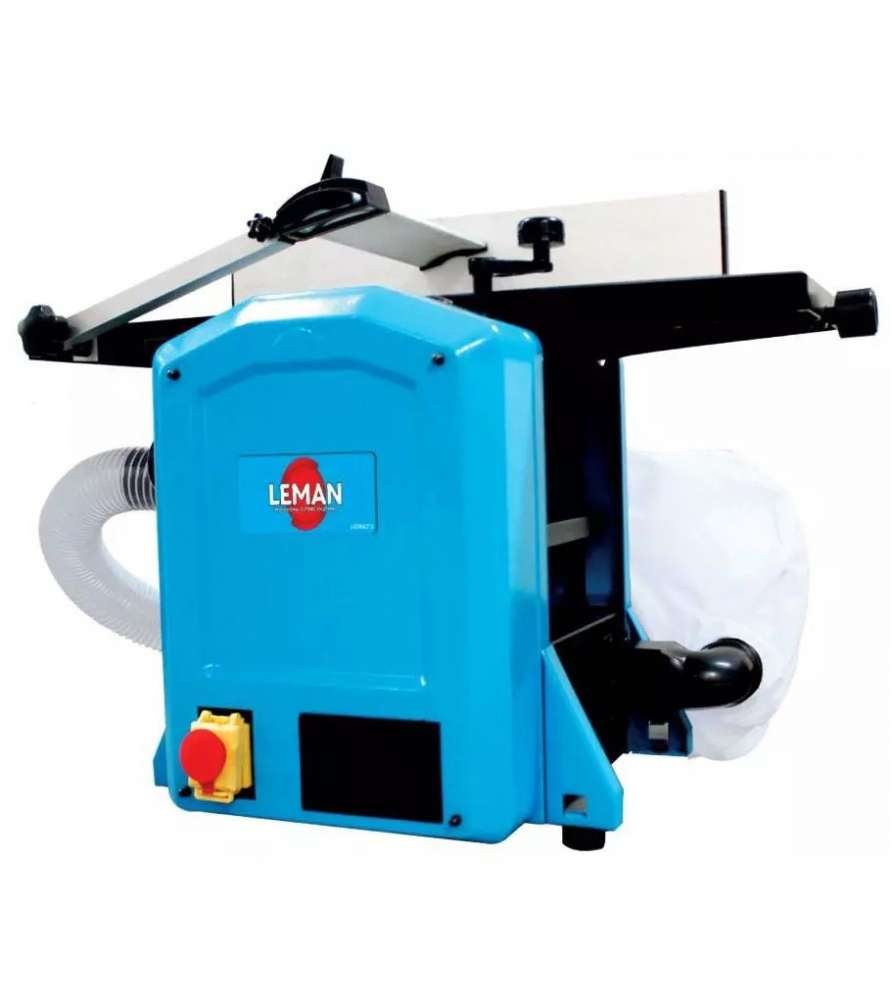

The Leman LODRA210 jointer and planer is the only machine that offers 200 mm in jointing and 194 mm in planing!

• Compact and easy to transport, ideal for assembly operations
• Quick and easy adjustment of pass removal
• Standard with integrated extraction and shavings bag
• Stable guide tiltable from 90° to 45°
• Perfectly flat aluminum jointing tables for precise results
• IP 54 lockable on/off switch with undervoltage coil
• HSS 2-iron precision shaft
• CE-compliant shaft protection for maximum safety
• Powerful motor for optimal planing
• Ideal for DIY enthusiasts
• Standard with suction hood for planing

Important recommendation from Probois for many woodworking machines :

• Before starting, always check the inside of your machine, see if the belts are put on correctly, tighten the bolts, etc. because different transports cause vibrations.
• Always use an extension cord with a 2.5² wire size
• The extension cord must not exceed 10 meters and must not be coiled
• The use of drums, triplets or multi-grips is PROHIBITED.
• Have a standard electric meter with neutral and earth
• Always work with a chip vacuum cleaner for your health and for the warranty of the machine
• Always grease cast iron tables with wood slider
• Always work with protections in place
• Do not work with unsharpened or dull irons, this can damage the mechanism, the feed of the planer, break the belt

TECHNICAL CHARACTERISTICS OF THE Leman LODRA210 :

Jointer mode :

• Cutting width: 210 mm
• Table length: 740 mm
• Shaft speed: 8500 rpm
• Number of irons: 2
• Shaft diameter: 50 mm
• Guide: 530 x 102 mm
• Tilting guide: 90° to 45°
• Maximum removal per pass: 0.8 to 2 mm (hardwood to softwood)

Planing mode :

• Table length: 285 mm
• Plane width: 204 mm
• Planing height, min/max: 6 - 210 mm
• Maximum removal per pass: 0.8 to 2 mm (hardwood to softwood)
• Feed speed: 7 m/min
• ø suction nozzle: 60 mm
• S1 100% continuous power: 1.5 kW (2.0 hp)
• Voltage: 230 V
• Dimensions (L x W x H): 820 x 530 x 535 mm
• Weight (approx.): 31 kg

The Leman LODRA210 jointer is delivered with :

HSS irons, Integrated suction, Suction hood, Shavings bag, pusher.

Our opinion : Machine intended for individuals with occasional use which, unlike the Scheppach HMS850 or Scheppach HMS860 and others similar which only allow 120 mm in planing, this LODRA210 offers 194 mm!
