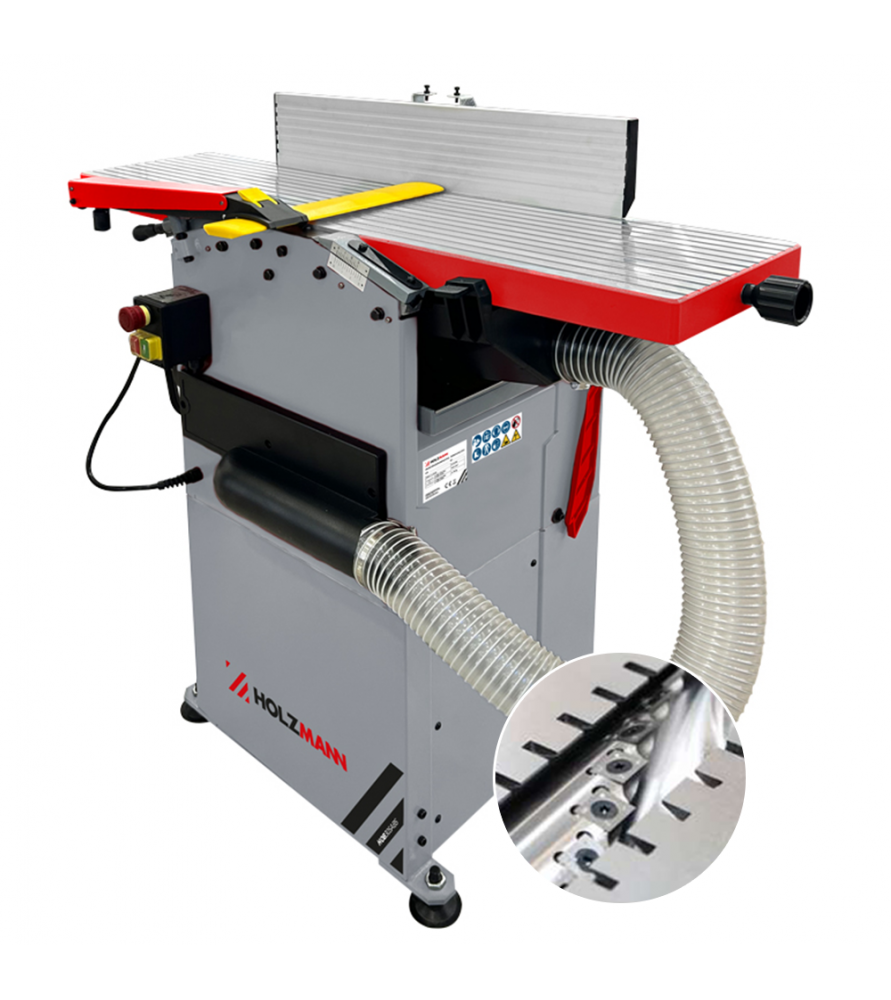

Properties of the Holzmann HOB305ABSSMW2 thicknesser and planer :

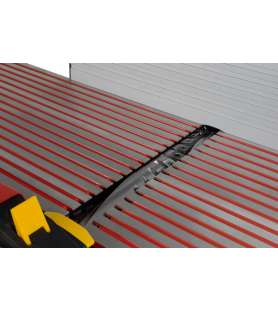

• Both planing tables feature fine adjustment and are designed with slots to keep noise levels down
• Thicknessing table is guided on four threads to ensure accurate planing of boards, planks, etc.
• Integrated dust extractor guarantees optimal price-performance ratio
• Quick and easy adjustment of chip removal
• Dust hood (Ø 100 mm) can be used for both planing and thicknessing
• Helical shaft
• Corrugated infeed roller ensures safe and consistent workpiece infeed
• Solid planer fence with prism guide can be tilted from 90° to 45°
• Serially equipped with knife gauge to allow accurate adjustment of knives
• Infeed can be switched off when planing

Technical specifications of the Holzmann HOB305ABSSMW2 thicknesser and planer :

Planer :

• Planing width : 305 mm
• Table length : 1080 mm
• Table height : 920 mm
• Shaft rotation speed : 6700 rpm
• Helical shaft
• Planer shaft diameter : 62 mm
• Planer fence : 640 x 125 mm
• Fence tiltable : 90° to 45°
• Max. cutting depth : 0.8 to 1 mm (hardwood) / 1 to 1.5 mm (softwood)

Thicknesser :

• Table length : 500 mm
• Working width : 300 mm
• Working thickness, min./max. : 6 - 160 mm
• Max. cutting depth : 0.8 to 1 mm (hardwood) / 1 to 1.5 mm (softwood)
• Feed speed : 8,5 mm
• Dust extraction outlet : 100 mm / 75 mm
• Motor power output S1 100% : 1,8 KW (2,4 HP)
• Motor power input S6 40% : 2,5 KW (3,4 HP)
• Voltage : 230 V
• Machine dimension (L x W x H) : 1140 x 820 x 1100 mm
• Weight approx. : 94 kg

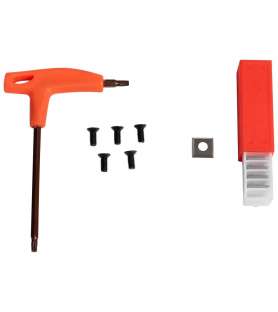

Standard accessories of the Holzmann HOB305ABSSMW2 thicknesser and planer :

• Helical shaft
• Knife gauge
• Integrated dust extractor
• Waste bag
• 2x Push handle
• Carriage
