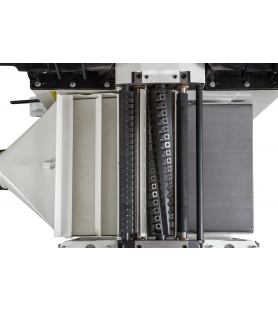

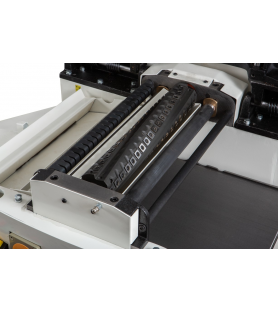

This machine is equipped with a shaft with 72 carbide inserts in helical assembly!

• This positioning of the pads makes it possible to obtain results without any tearing of the fibres, with smooth, almost polished surfaces.

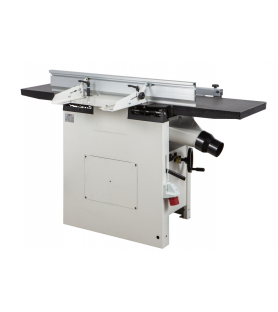

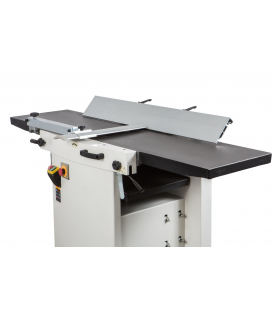

• General description of the JET JPT-410HH planer jointer:
• Quick change from jointer to planer by lifting the 2 table flaps simultaneously
• Planed jointer table, in gray cast iron, guaranteeing optimal sliding of the workpieces
• Advance of wood disengageable in planing
• Best machining results by spiral blade shaft with reversible inserts
• Less frequent pad changes compared to resharpenable blades

Technical characteristics of the JET JPT-410HH planer jointer:

• Supply voltage: 400V
• Motor power P1-T: 4450W / S6 40%
• Motor power P2-T: 2950W / S1 100%
• Max planing width : 407mm
• Maximum planing height: 3 - 225 mm
• Max. pass thickness (Planing): 4.5 mm
• Max thickness of pass (Thicknesser): 3 mm
• Feed speed: 7 m/min
• Rubber output roller diameter: 32 mm
• Length of the jointer table: 1660 x 410 mm
• Minimum work piece length: 150 mm
• Rotation speed - Planer: 5500 rpm.
• Shaft diameter: 70mm
• Number of irons: 3
• Planing guide (H x W): 150 x 1100 mm
• Guide tilt: +45° / 90°
• Suction connection diameter: 120 mm
• Dimensions: 1600 x 870 x 1000mm
• Weight: 370kg

The JET JPT-410HH planer jointer comes with:

• 72 reversible pads
• 100mm suction nozzle
• Jointer Table Precision Guide
• Adjustable shaft protection
• push button
