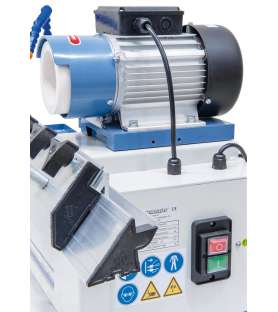

General description of the Bernardo PHMS630A jointer blade sharpener :

• Vibration-free driven wheel for optimum grinding results
• Precise solid aluminum planer blade holders
• Designed to sharpen plane irons up to 640mm in length
• Equipped with a cooling system as standard
• Grinding angle adjustment at the front of the machine
• Guide rail swivels from 23° to 55°

The Bernardo PHMS630A jointer blade sharpener comes with :

• grinding wheel
• Plane iron holders
• cooling device

Technical characteristics of the Bernardo PHMS630A jointer blade sharpener :

• Grinding wheel: 100 x 50 x 20 mm
• Grinding wheel speed: 2800 rpm
• Max length of planing iron: 640 mm
• Swivel range guide rail: 23° - 55°
• Engine power S1 100%: 0.55 kW (0.75 hp)
• S6 40% motor input power: 0.75 kW (1.0 HP)
• Voltage: 230V
• Machine dimensions (W x D x H): 870 x 420 x 460 mm
• Approximate weight: 29 kg
