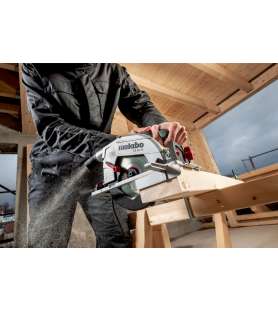

Metabo KS66FS portable circular saw for fast and precise miter cuts!

These cuts can be made by easily attaching a Metabo KFS guide rail (optional)

General description of the Metabo KS 66 FS portable circular saw:

• lightweight die-cast aluminum sole
• Grip area with non-slip softgrip surface
• Clearly visible cutting indicator for sawing from layout
• 0 ° adjustable position for maximum cutting precision
• Possibility of connecting an all-purpose vacuum cleaner
• Swiveling swarf evacuation thanks to rotating suction pipes
• With metaBOX, the smart solution for transport and storage

Technical characteristics of the Metabo KS 66 FS portable circular saw:

• Rated power input: 1500 W
• Useful power: 840 W
• Max cutting depth at 90 °: 66 mm
• Max cutting depth at 45 °: 47 mm
• Max cutting depth with guide rail: 61 mm
• Blade Ø x bore: 190 x 30 mm
• Tilt range from / to: ‌ 0 / + 47 °
• No-load speed: 5000 / min
• Rotation speed at nominal load: 3800 / min
• Max cutting speed : 50 m / s
• Weight without cable: 4.9 kg
• Cable length: 4 m

Acoustic emission

• sound level: 95 dB (A)
• Sound power level (LwA): 106 dB (A)
• Uncertainty of measurement K: 3 dB (A)

The Metabo KS 66 FS circular saw is delivered with:

• Carbide circular saw blade (24 teeth)
• Side guide
• Allen key
