General description of the automatic trainer for spindle moulder Maggi STEFF 20316 POWER :

QUALITY MACHINING

Model with 3 rollers, ideal for driving slats, small parts and for medium-sized machining, thanks to the 2 rollers which perfectly hold the part at the entrance and the roller which holds it at the exit

QUICK ADJUSTMENT

16 SMART SPEEDS

By reversing and replacing the gears, it is possible to obtain 16 fixed speeds. Unique on the market! The selector allows you to quickly change between speeds 1 and 2 and reverse the direction of travel (forward/reverse)

ECO PEBBLES

3 patented SHS System Feeder Grip 50 Shore rollers. Superior grip, roller wear reduced by 51%. Thanks to the replaceable rubber coating, it produces less waste to better respect the environment.

THE VALUE OF SAFETY

Using automatic feed protects the operator's hands from serious accidents. Its effectiveness depends on precise design and manufacturing criteria. MAGGI trainers are the only ones designed and manufactured in Italy. They comply with all CE safety regulations.

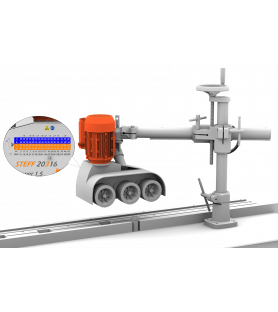

UNIVERSAL BRACKET

Structure for support and optimal positioning of the automatic feeder on the machine tool. Easy to orient, stable and robust; cast iron base, crosspiece, cap, pipe, junction and collar and two very thick ground steel columns. Adjustment keys and handwheels ensure rapid and precise positioning.

HIGH ADAPTABILITY

the well-calibrated spring suspension: 20 mm, allows parts with different thicknesses to be advanced without the need for additional adjustments

ZERO MAINTENANCE AND LUBRICATION

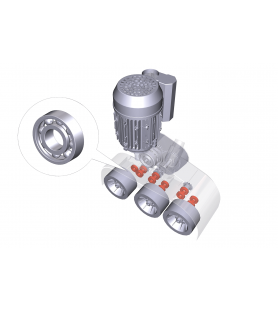

The ball bearing transmission system greatly reduces wear and friction, allowing considerable energy savings. Unique on the market

ONE OF A KIND

The most powerful motor in its category (1.5 Hp) and a range of 16 speeds are unique features on the market

STRONG AND RELIABLE SUPPORT

Equipped with an anti-stall mechanical safety device "SPS System" which prevents any accidental disconnection of the elements, in compliance with CE safety standards.

Technical characteristics of the automatic trainer for spindle moulder Maggi STEFF 20316 POWER :

• Number of forward and reverse gears: 16
• Fixed speeds: 3 - 5 - 6 - 7 -9 - 11 - 12 - 13 - 17 - 18 - 24 - 25 - 32 - 35 - 48 - 63 mt/min
• Number of rollers: 3 (semi-hub)
• Roller diameter and thickness: 120 x 60 mm
• Motor: 1.5 HP / 1.1 kW RPM 1400 /2800
• Pebble suspension: 20 mm
• Distance between the center of the different rollers: 142 mm - 124 mm
• Distance between the center of the 1st and last roller: 266 mm
• Drive unit dimensions – net weight: 424 x 210 x 460 mm - 30 Kg
• Dimensions mounted universal support – net weight: 750 x 540 mm mm - 24 Kg
• Voltage: 400V
