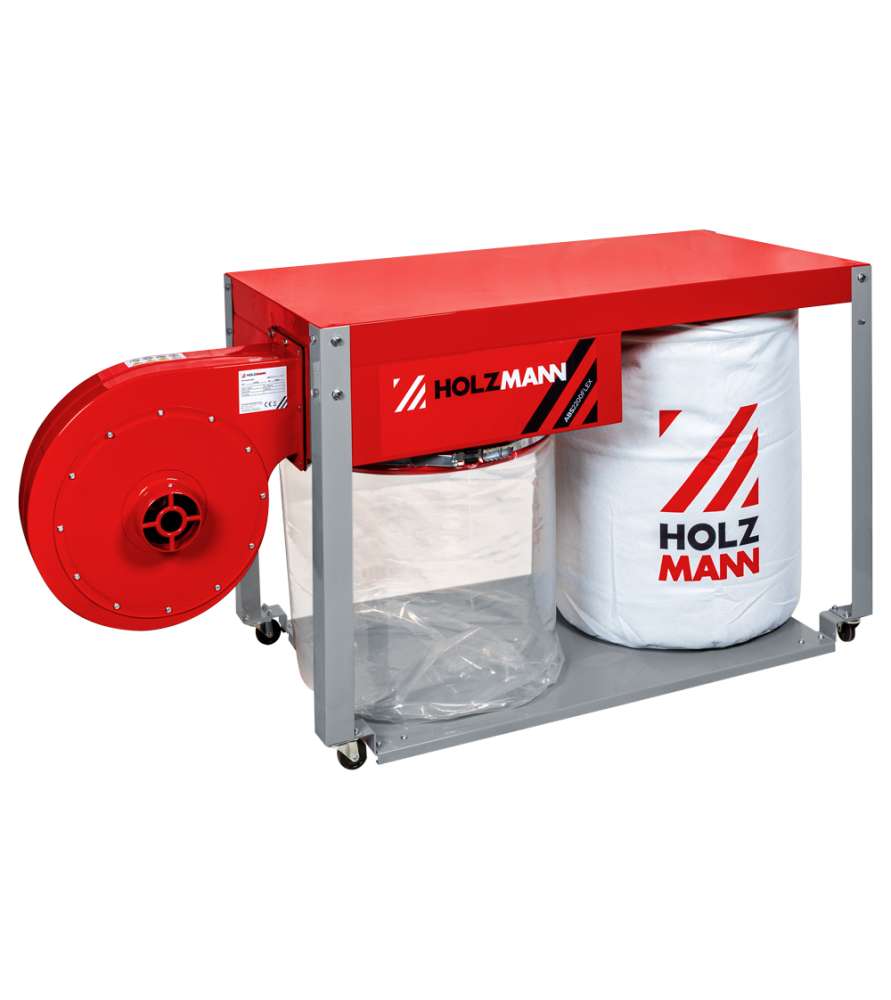

General description of the Holzmann ABS2200FLEX suction turbine :

• Solid metal construction
• Constant suction power even under continuous load
• Good suction power (filter size Ø500 x 650 mm)
• Integrated device for easy maneuvering
• Compact design (H: 750 mm) also ideal for integration under woodworking machines

Technical characteristics of the Holzmann ABS2200FLEX suction turbine :

• Motor power 2200 W / 3 CV
• Voltage: 400V - 50 Hz
• Speed in rpm: 2850
• Suction connection in mm 1 x 100
• Dimensions in mm: 1540 x 550 x 750
• Extraction capacity in m³ / H: 2200
• Chip bag Ø in mm: 500
• Chip bag length in mm: 800
• Turbine Ø in mm: 305
• Negative pressure in PA: 2200
• Chip bag volume in L: 160
• Sound power level in dB (A): 96
• Sound pressure level in dB (A): 86.7
• Net weight: 50

Scope of delivery:

chassis, filter and chip bag
