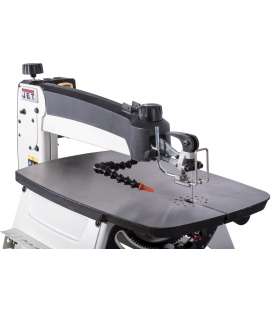

The JET JWSS-22B scroll saw is a large-scale, professional-type machine with its XXL 600 x 325 mm table and its very deep 565 mm gooseneck. Top model of high finish.
Adjustable table 40° left - 45° right with transparent blade cover
Dust blower system, permanently cleaning the cutting line.
Quick blade change device
The JET JWSS-22B scroll saw comes with :
Assortment of 5 blades
Dust blower system
2 blade support devices
Technical characteristics of the JET JWSS-22B scroll saw :
Supply voltage: 230V
Saw blade diameter: 130 mm
Blade lift height: 19 mm stroke
Cutting width at parallel guide: 565 mm
Table size: 322 x 600 mm
Max height cutting angle at 90°: 48 mm
Max height cutting angle at 45°: 38 mm
Swivel range: 40° left - 45° right
Cutting speed: 400 to 1550 movements / minute
Dimensions: 640 x 290 x 380mm
Net weight (kg): 31.00
