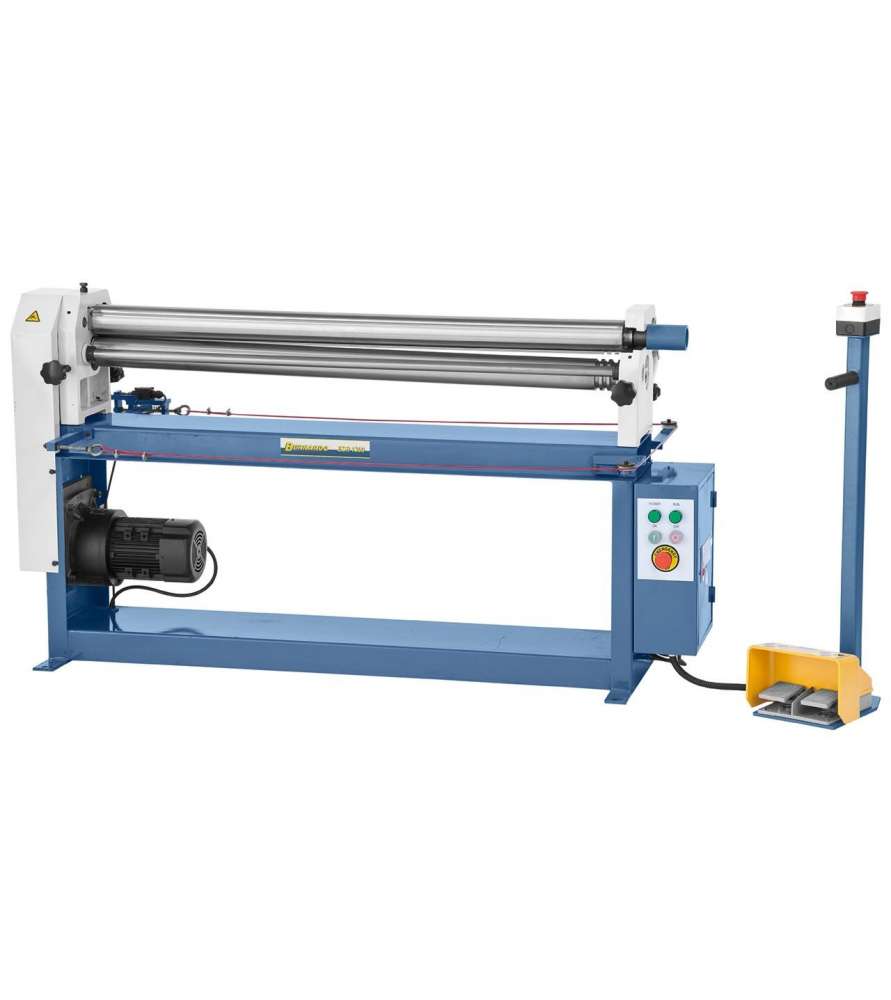

Characteristics of the Bernardo ESR 1300x1.5 motorized rolling machine :
- Standard with separate pedal with emergency stop function
- For wrapping steel, sheet metal, stainless steel and aluminum
- Conical bending device included in delivery
- Powerful drive motor for optimal work
- Top and rear rollers equipped with cable laying grooves as standard
- Bending rollers made from premium steel
- For the manufacture of keels, pipes, cylinders, etc.
- Increased safety when working thanks to a safety rope with automatic cut-off
The Bernardo ESR 1300x1.5 motorized rolling machine is delivered with :
- Pedal with emergency stop
- Conical bending device
- Rope safety device
- Top and rear rollers with grooves for cable laying
Technical characteristics of the Bernardo ESR 1300x1.5 motorized rolling machine :
- Roller length: 1300 mm
- Max thickness of sheet metal (400 N/mm2): 1.5 mm
- Roller: 75 mm
- Roller speed: 6m/min

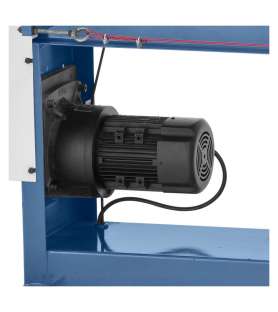

- Motor: 750W
- Width: 1700 mm
- Depth: 640 mm
- Height with base: 900 mm
- Weight approx: 300 kg
BESR1300x1.5
2024-07-01
Data sheet
