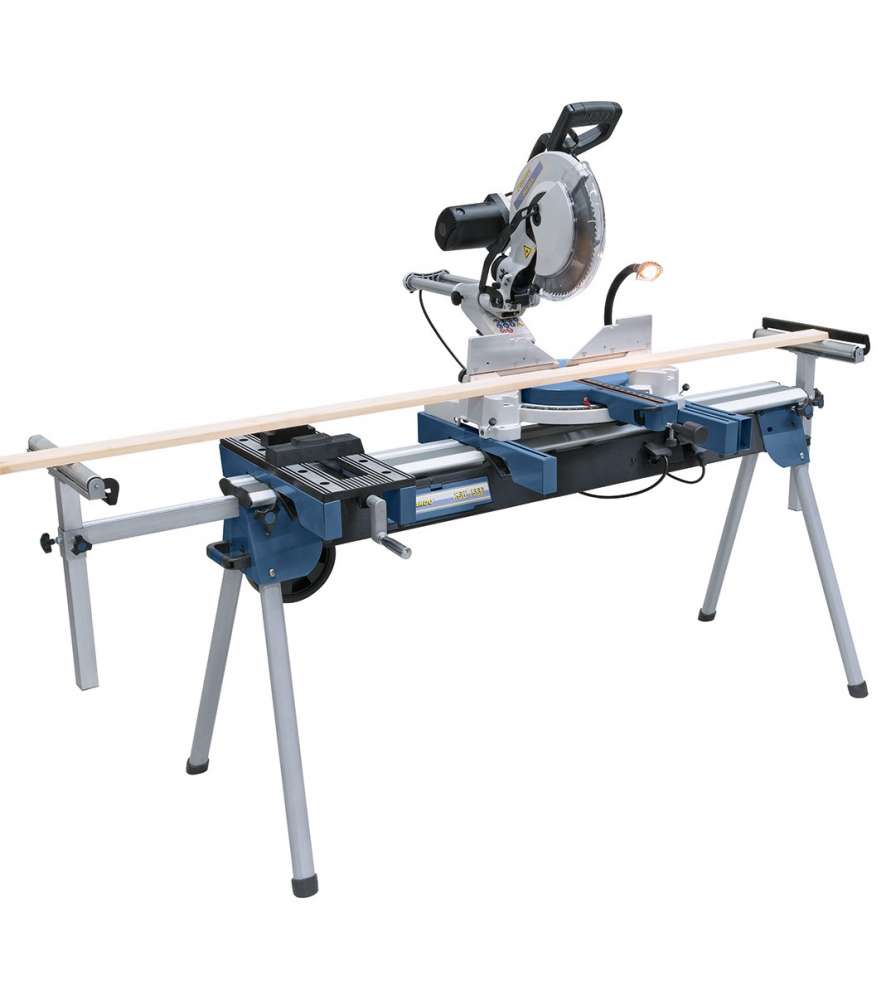

General description of the Bernardo ZKG305D radial mitre saw:

• For cutting wood, coated panels, plastics and non-ferrous metals
• As standard with laser line for marking the cutting line

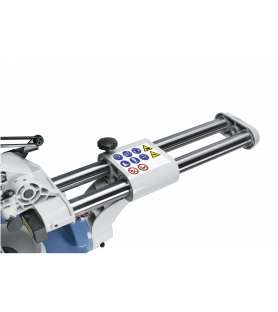

• Double column guide for simple and regular radial movement
• Powerful motor for optimum results even in prolonged operation
• Table extension on both sides for large rooms
• With depth-of-cut limiter for grooving
• The blade is automatically protected when the saw unit is raised
• For end, bias, miter and double miter cuts
• As standard with suction option directly on the saw unit
• Quick and easy blade change with locking system
• Possibility of blocking the column guide for safe transport
• Turntable with 0 ° / 15 ° / 22.5 ° / 31.6 ° / 45 ° locking function
• Lightweight and easy to transport
• Easily readable incline, miter and cutting width graduations

Technical characteristics of the Bernardo ZKG305D radial mitre saw:

• Blade Diameter x Bore: 305 x 25.4mm
• No-load speed: 4800 rpm

Cutting capacity:

• Straight 90 ° / 90 °: 340 x 95 mm
• Miter at 45 ° right / left: 240 x 95 mm
• Angled at 45 ° left *: 340 x 55 mm
• Angled at 45 ° right *: 340 x 55 mm
• Double miter at 45 ° left: 240 x 55 mm
• Double miter 45 ° right: 240 x 55 mm
• Engine power: 1.6 kW (2.2 hp)
• Voltage: 230 V
• Machine dimensions (W x D x H): 860 x 900 x 680 mm
• Weight (approx.): 28 kg
• * Saw block

The Bernardo ZKG305D radial mitre saw is delivered with:

• Carbide blade 305 x 3.0 x 25.4 mm / 80 teeth
• Side table extension
• Extendable guide rails
• Laser marking line
• Chip bag
• Blank holder
