The Bernardo CSM2000 combined spindle moulder saw is a powerful machine equipped with an imposing 2000 mm guide!

Its carriage is sliding and made of aluminum with hardened guides!

General description of the Bernardo CSM2000 combined router saw:

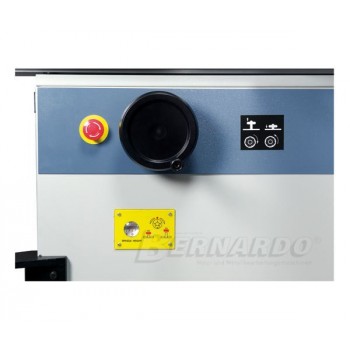

• Spindle height adjustment by crank on the front face, reading on scale
• Powerful motor guarantees optimal cutting even during prolonged operation
• Sliding roller table to simplify the handling of large parts

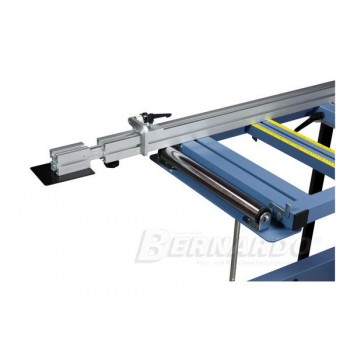

• Extendable telescopic guide (up to 2260 mm), usable at the front or rear of the sliding table

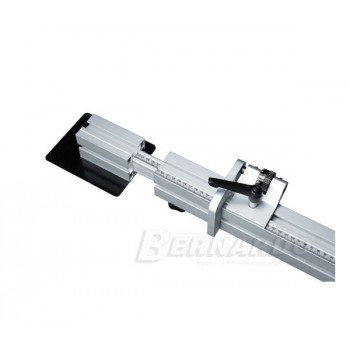

• Telescopic longitudinal fence with folding stop with fine adjustment as standard
• Aluminum parts (cutting carriage, guides, etc.) anodized
• LED speed display for quick and easy reading

Technical characteristics of the Bernardo CSM2000 combined router saw:

Circular saw

• Dimensions table: 860 x 450 mm
• Table height: 850 mm
• Table extension: 500 x 310 mm
• Side table extension: 800 x 880 mm
• Roller sliding table: 750 x 580 mm
• Cutting carriage: 2000 x 270 mm
• Sliding table stroke: 2000 mm
• Diam. maxi blade: 315 x 30 mm
• Maximum cutting height at 90° / 45°: 100 / 80 mm
• Cutting width with parallel guide: 1270 mm
• Blade rotation speed: 4500 rpm
• Scoring speed: 8500 rpm
• Scorer: 2-100 x 20 mm
• ø suction nozzle: 100 mm
• Continuous power S1 100%: 2.8 kW (3.8 hp)
• Power S6 40%: 3.9 kW (5.3 hp)

Spindle moulder

• Shaft diameter: 30 mm
• Adjustable height: 100mm
• Opening in the table: 80 / 100 / 140 / 190 mm
• Maximum tool height: 100 mm
• Diam. maximum tool size:
• - in milling: 180 mm
• - in tenoning: 200 mm
• Spindle speed: 1800 / 3000 / 6000 / 9000 rpm
• Continuous power S1 100%: 2.8 kW (3.8 hp)
• Power S6 40%: 3.9 kW (5.3 hp)
• Voltage: 400V
• Machine dimensions (W x D x H): 2000 x 3010 x 1250 mm
• Weight (approx.): 364 kg

The machine comes with:

• Carbide blade 315 x 3.0 x 30 mm / 40 teeth
• 2-part scorer 2-100 x 20 mm / 24 teeth
• Saw blade guard with suction nozzle and hose

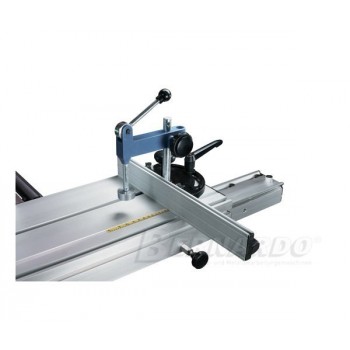

• Miter gauge with eccentric clamp
• Pantograph support
• Table extensions (rear and side)
• Telescopic guide

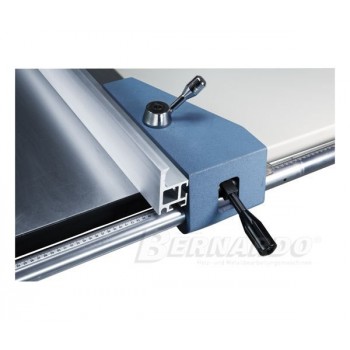

• Fine-adjustable rip fence
• Roller sliding table
• Router hood
• Abrasive sleeve diam. 75mm
• Protection and support device
• Reversal of the direction of rotation of the milling spindle
• LED speed display
• push button
• Service tools

Important Probois recommendation for many woodworking machines:

Before starting, always check the inside of your machine, see if the belts are fitted correctly, tighten the bolts, etc... because the various transports cause vibrations.

Always use a 2.5² wire size extension cord

The extension cord must not exceed 10 meters and must not be rolled up

The use of drums, triplets or multi-plugs is PROHIBITED

Have a standard electricity meter with neutral and earth

Always work with a chip extractor for your health and for the guarantee of the machine

Always work with guards in place

Do not work with blunt or blunt tools as this may damage the internal mechanism.
