Quality router-saw combination for the professional and the hobbyist!

Main features of the Bernardo PSM2000 spindle moulder saw :

• Sliding roller table to simplify the handling of large parts
• Telescopic longitudinal guide with folding stopper with fine adjustment as standard
• Quick and easy reading of spindle speed on digital display
• Robust router hood with precision-adjustable aluminum guide rails
• Large gray cast iron milling block tiltable from 0 ° to -45 °
• Great advantage of this machine: blade diameter 315 mm usable even with the scorer
• Machine frame in steel and gray cast iron, undeformable
• Stable sliding table to pass large, heavy panels without assistance

Technical characteristics of the Bernardo PSM2000 spindle moulder saw combination:

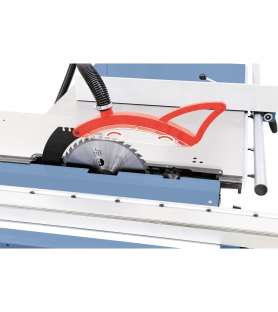

1 - Circular saw part

• Table dimensions: 1650 x 380 mm
• Table height: 970 mm
• Table extension: 350 x 310 mm
• Side table extension: 800 x 880 mm
• Sliding roller table: 940 x 580 mm
• Cutting carriage: 2000 x 270 mm
• Sliding table stroke: 2000 mm
• Diam. max blade: 315 x 30 mm
• Maximum cutting height at 90 ° / 45 °: 100/80 mm
• Cutting width with parallel guide: 1220 mm
• Blade rotation speed: 4500 rpm
• Scoring machine rotation speed: 8500 rpm
• Scoring unit: 90 x 20 mm
• ø suction nozzle: 95 mm
• Continuous power S1 100%: 3.0 kW (4.0 hp)
• Power S6 40%: 4.2 kW (5.7 hp)
• Voltage: 400V

2 - Spindle moulder saw

• Shaft diameter: 30 mm
• Useful height: 100 mm
• Tilting shaft: 0 ° to 45 °
• Maximum tool height: 110 mm
• Diam. maximum tool housing / well: 220/200 mm
• Spindle speed: 1800/3000/6000/9000 rpm
• Continuous power S1 100%: 2.8 kW (3.8 hp)
• Power S6 40%: 3.9 kW (5.3 hp)
• Voltage: 400V

3 - Parts common to the router-saw

• Suction outlets: 3x100 mm + 1x 40 mm
• Sound level: <80 db
• Machine dimensions (W x D x H): 2000 x 2900 x 1260 mm
• Weight approx. : 425 kg

IMPORTANT FOR THE DELIVERY AND START-UP OF XL MACHINES!

XL machines are only shipped by 38 ton truck. The place of delivery must imperatively be planned so that this type of truck can approach and maneuver easily. If access is only possible by 19 tonne truck (minimum), we must first inform us so that a solution can be found. If this results in additional shipping costs, they must be paid before shipping. Start-up: The prices do not include the assembly or the electrical installation which must be done by a professional in order to avoid any damage to the motors and electrical circuits of the machine that the warranty cannot cover.
