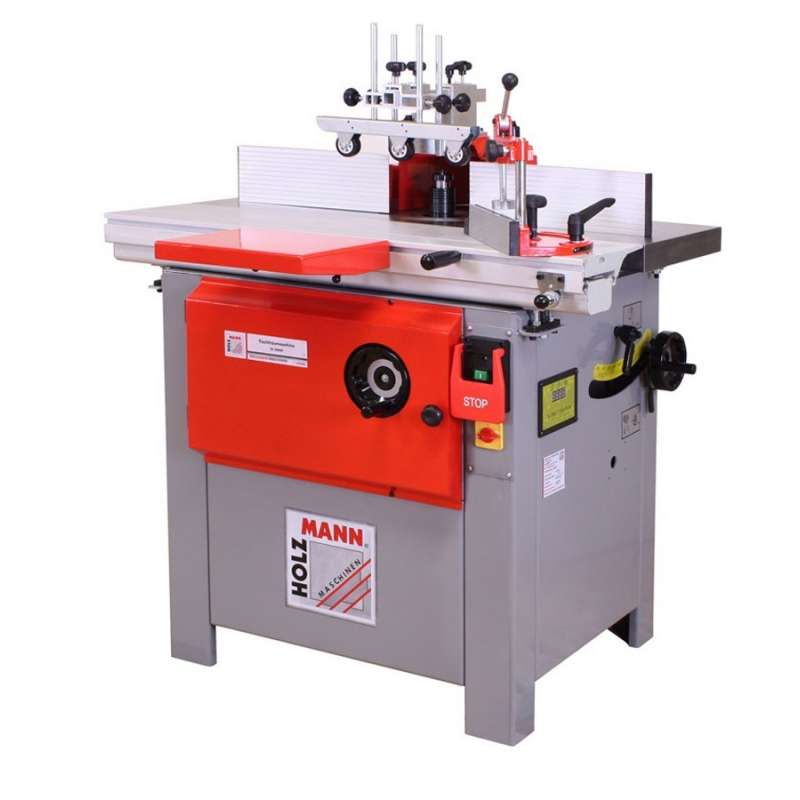

Spindle moulder Holzmann FS200SF with protectors and drive roll system for a more convenient job!

Machine also equipped with 4 speeds of rotation, change of speed by changing the position of the belt on the pulleys, accessible by the front door.

Advantages of the Spindle moulder Holzmann FS200SF:

• Solid iron support with anti-twist system
• Aluminum trolley 250 mm wide
• 250 mm table
• Tilting shaft from -5º to + 45º by steering wheel
• Speed ​​control by viewfinder L.C.D
• Blocking the tree outside for a more convenient tool change

Spindle delivered with: table extension, safety bar guide, presser

Specifications of the Spindle moulder Holzmann FS200SF:

• Tree Ø: 30 mm
• Speed ​​of rotation of the shaft: (4) 1800 / 3000/6000 9000 rpm
• Running of the tree: 100 mm
• Inclination of the tree: 0 to -45 °
• Opening the Table: 200 mm
• Max Ø of the tool in the table: 180 mm
• Max tool diameter in the hood: 180 mm
• Guide size routing: 2 x 360x120 mm
• Table dimensions:: 1000 x 360 mm
• Cart dimensions: 1000 x 240 mm
• Height of the machine: 900 mm
• Ø Suction nozzle: 100 mm
• Engine power S1 (100%) / S6: 2.8 kW / 3.75 kW
• Voltage: 400V
• Net weight / Gross weight: 250 kg / 270 kg

Optional: frame cart with crutch from photo 2.
