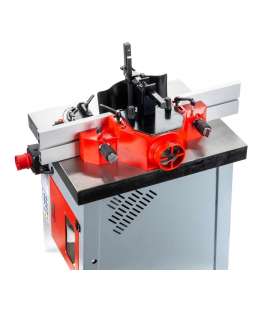

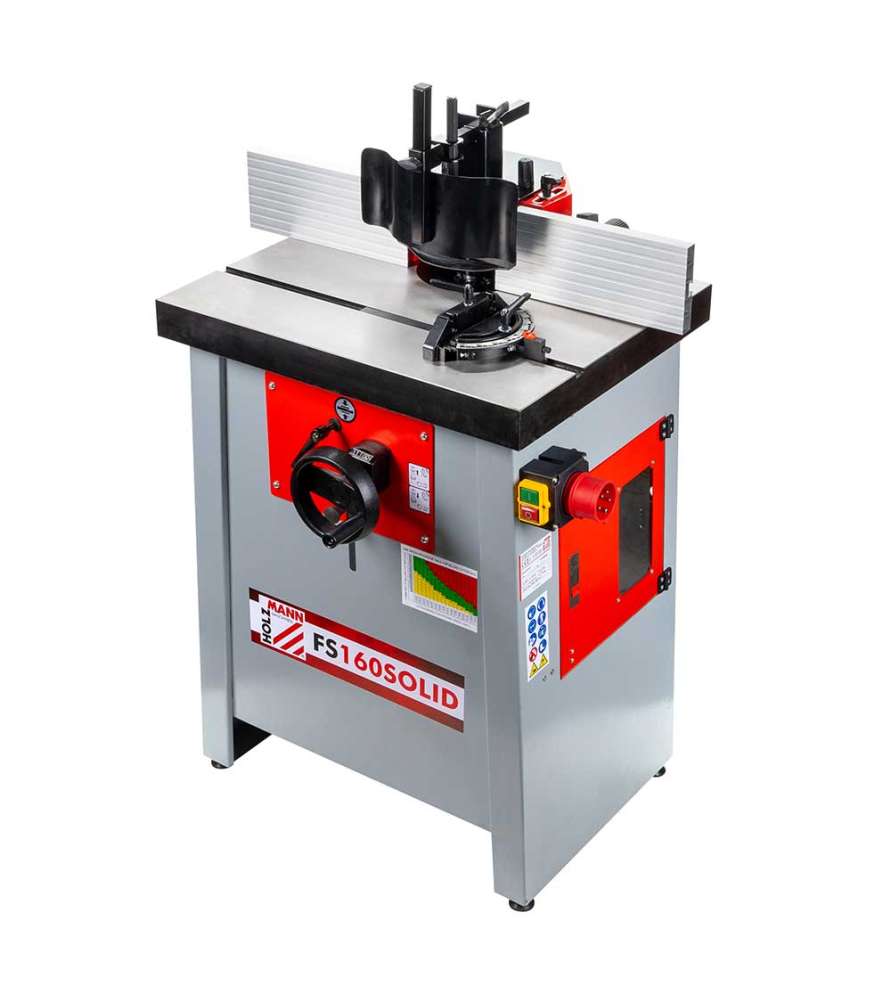

The Holzmann FS160SOLID 4-speed compact spindle moulder is the best choice for woodworking enthusiasts!

Indeed, it is ideal for users with significant workspace constraints, but who wish to be able to equip themselves with a workshop machine with the advantage of stability.

With its solid cast iron table which absorbs vibrations well, it is also fully equipped to tackle the vast majority of possible router jobs.

It will thus satisfy both beginners reluctant to switch immediately to a more substantial model, and experienced people who need a small extra workshop top.

General description of the Holzmann FS160SOLID 4-speed compact spindle moulder :

• Compact router with torsion-resistant solid cast iron table
• Additional interchangeable spindle with router collet for router bits
• Versatile, space-saving compact machine with a wide range of applications and a small footprint
• Dynamically balanced spindle ensures precise operation and use

The Holzmann FS160SOLID 4-speed compact spindle moulder comes with:

• Router hood
• Perpendicular guide
• Interchangeable pin
• Router clamp 12 mm
• corner guide
• Digital height indicator on adjustment wheel

Technical characteristics of the Holzmann FS160SOLID 4-speed compact spindle moulder:

• Motor power: 2200W
• Voltage: 400V
• Worktable dimensions: 620 x 510 mm
• Table height: 860mm
• Total dimensions of the machine: 640 x 660 x 1250 mm
• Shaft diameter: 30mm
• Shaft rotation speeds: 1400 / 4000 / 6000 / 9000 rpm
• Shaft stroke: 100mm
• Maximum clamping height: 105 mm
• Table opening: 160 mm
• maximum ø of the tool in the table: 150 mm
• maximum ø above the table: 160 mm
• Sound power level: 103 dB (A)
• Sound pressure level: 89.5 dB (A)
• Net / Gross Weight: 110 Kg / 126 Kg
