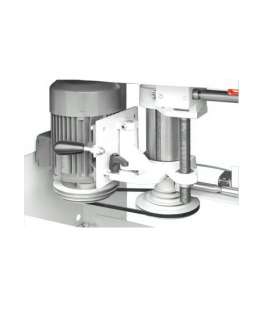

General description of the Holzprofi TO1004 spindle moulder:

• Shaft mounted on high-precision bearings for a maximum rotation speed of 8,000 rpm. 4 rotation speeds
• Electronic brake for electrodynamic stopping.
• Increased safety at work thanks to the electronic blocking of the start of the machine when changing the tool and when changing the rotation speed of the tools and thanks to the integral safety guide 2 x 350 mm and 154 mm high, 2 exits suction including one in the table
• Micrometric displacement of the housing
• Ideal for workshops with limited space

Technical characteristics of the Holzprofi TO1004 spindle moulder:

• Dimensions of the cast iron table: 1000 x 500 mm
• Working height: 850mm
• Distance from shaft to edge of table: 285 mm
• Shaft diameter: 30mm
• Useful shaft length: 125 mm
• Shaft stroke: 160mm
• Shaft Climb: Manual
• Max diameter of the tool in the profiling casing: 180 mm
• Rotation speeds 1400/3500/6000/8000
• Safety guide with bars: No
• 230V single-phase motor power: 2.2 KW
• Suction nozzle diameter: 2 x 120 mm
• Weight: 195kg

Optional: tenoning trolley
