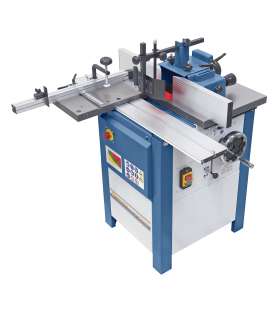

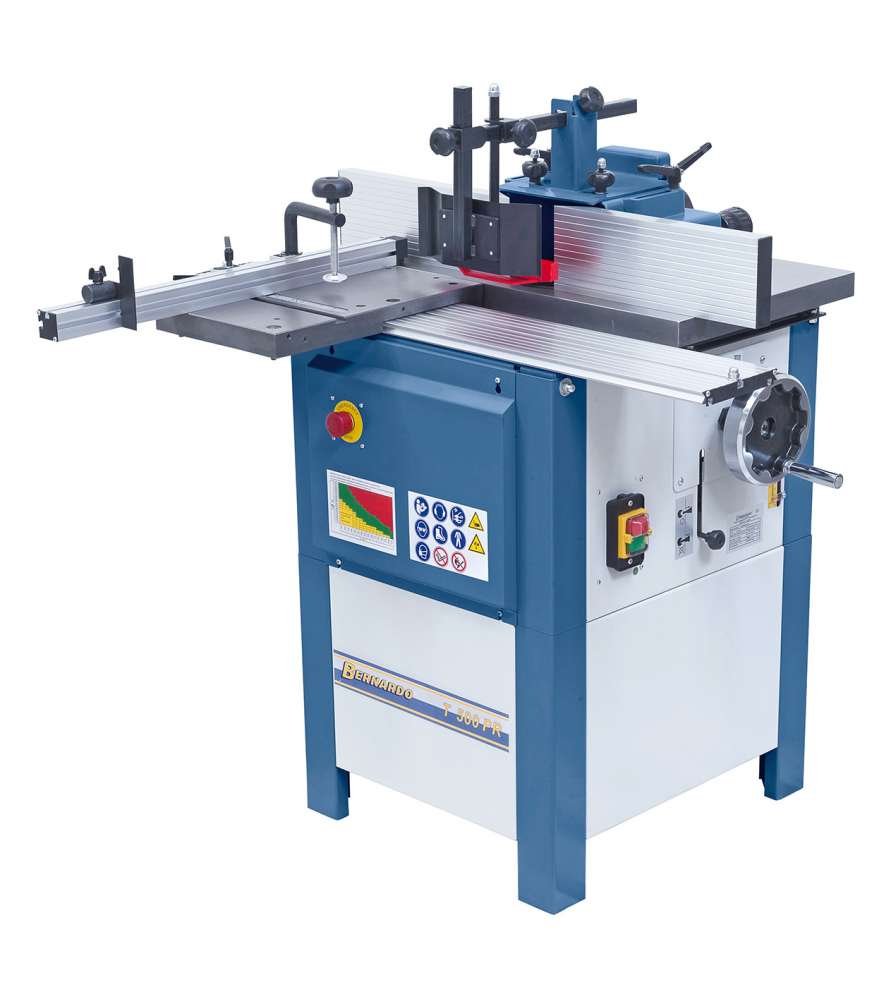

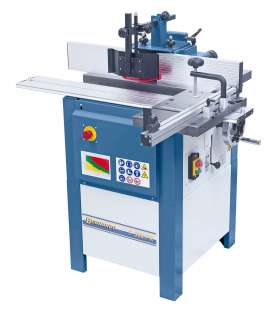

Bernardo T500PR 4-speed spindle moulder with a robust cover!

This spindle moulder is also equipped with precision-adjustable aluminum guide rails!

Advantages of the Bernardo T500R spindle moulder :

• Great ease of use thanks to the standard sliding table
• Very rigid gray cast iron table for maximum precision

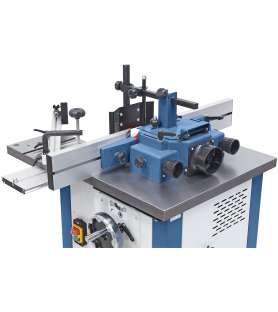

• Solid router hood with 100 mm suction nozzle

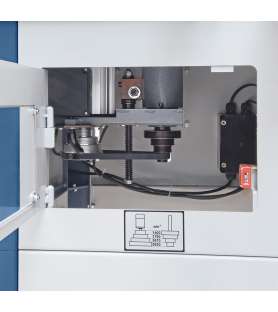

• Quick and easy speed adjustment via V-belt

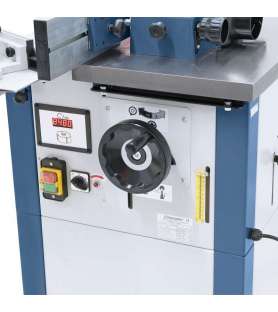

• Ergonomic arrangement of control elements for easy working
• Largely dimensioned cutter block in gray cast iron

Technical characteristics of the Bernardo T500PR spindle moulder :

• Table dimensions 600 x 400 mm
• Sliding table dimensions: 400 x 250 mm
• Working height: 820 mm
• Shaft diameter: 30 mm
• Adjustable spindle height: 110 mm
• Maximum tool height: 105 mm
• Diam. maximum tool width: 160 mm
• Diam. maximum retractable tool width: 160 mm
• Spindle speed: 1400/3790/5670/8650 rpm
• S1 100% continuous power: 1.5 kW (2.0 hp)
• S6 40% power: 2.1 KW (2.8 hp)
• Voltage: 230 V
• Machine dimensions (L x D x H): 1040 x 1070 x 1130 mm
• Weight (approx.): 99 kg

The Bernardo T500PR spindle moulder comes with :

• Sliding table
• Stop rule
• Protection and support device
