4-speed spindle moulder with tilting shaft and sliding carriage Holzprofi TO1150

7,255.00 € Tax included

Including €2.50 for ecotax

Reference: HJTO1150

The Holzprofi TO1150 spindle moulder has an electronic brake for electrodynamic stopping, working in safety is therefore increased thanks to the electronic start-up blocking of the machine for work with complete confidence.

Engine voltage
Quantity
Contact us to find out the deadline


  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The Holzprofi TO1150 4-speed spindle moulder with tilting shaft and sliding carriage is ideal for professionals and experienced amateurs!

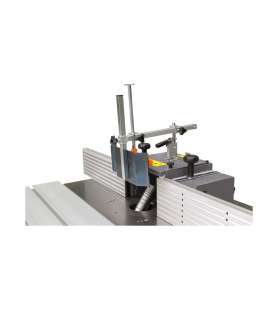

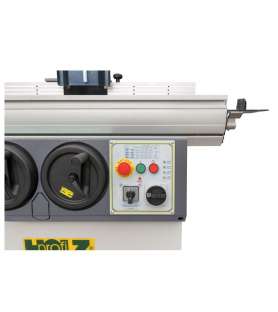

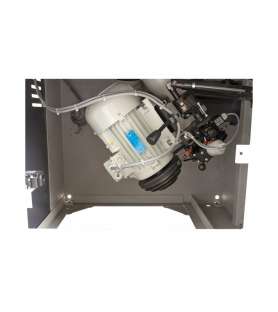

The spindle moulder has an electronic brake for electrodynamic stopping, working in safety is therefore increased thanks to the electronic starting blocking of the machine (by switch when changing the tool but also when changing the rotation speed of the tools and thanks to the integral safety guide of 2x350mm and 154mm in height). It is composed of 2 suction outlets, one of which is in the table. The displacement of the casing is micrometric, the table is in rectified cast iron and the sliding carriage in aluminium. The tilting shaft is mounted on high precision bearings for a maximum rotation speed of 8,000 rpm (4 rotation speeds available).

Technical characteristics of the Holzprofi TO1150 spindle moulder:

  • Dimensions of the cast iron table: 1000 x 650 mm
  • Dimensions of the sliding aluminum trolley: 1150 x 350 mm
  • Working height: 850m
  • Shaft diameter: 30mm
  • Useful shaft length: 125 mm
  • Shaft stroke: 175mm
  • Shaft Climb: Manual
  • Max diameter of the tool in the profiling casing: 180 mm
  • Rotation speeds 1400/3500/6000/8000
  • Safety guide with bars: Yes
  • Left and right rotation: yes
  • Motor power 380 V / 50 Hz: 3 KW - 4 CV
  • Suction nozzle diameter: 2 x 120 mm
  • Weight: 400kg

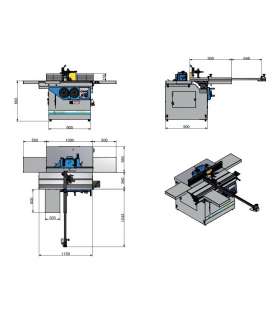

  • Dimensions: 1150x900x1120 mm
