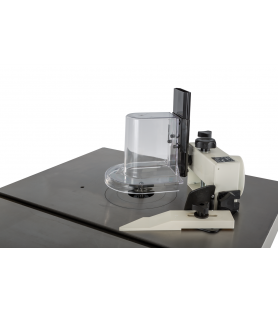

Technical characteristics of the JET JWS 34KX-M spindle moulder :

• Voltage: 230V ~1/N/PE 50Hz
• Power: 1.5 kW (2 HP) S1
• Shaft rotation speed: 1700/3500/6000/8000 rpm
• Table dimensions: 635 x 600 mm
• Table height: 830 mm
• Shaft diameter: 30mm
• Clamping height: 70 mm
• Shaft stroke: 80mm
• Collets: 8 and 12 mm
• Table opening diameter: 160 mm
• diameter max. of tool: 180 mm
• Tool above the table max: 120 mm
• Suction nozzle diameter: 100 mm
• Machine dimensions LxWxH: 920 x 680 x 1090 mm
• Net weight: 156 kg

The JET JWS 34KX-M 4-speed spindle moulder comes with :

• 30 mm shaft with rings
• Collets 8 and 12 mm
• router guide
• continuity plate
• Lateral and vertical pressers
• push button
• Shaft protector
• Miter guide
• Work tool
• Mounting accessories
• Manual
• Spare parts list
