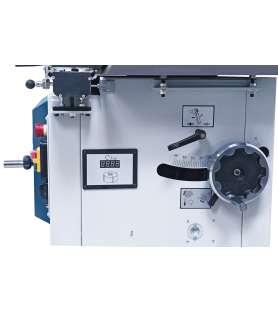

The Bernardo T800F 4-speed tilting spindle moulder has been designed to offer versatility and comfort of use!

Safety and ease of handling are additional advantages of this machine.

General description of the Bernardo T800F 4-speed tilting spindle moulder:

• Easy-to-maneuver sliding trolley to simplify handling of large parts
• Robust router hood with fine-tuned aluminum guide rails
• Quick and easy reading of speed on digital display
• Eccentric flange miter fence included
• Dynamically balanced milling spindle for precise operation
• Quick and easy speed adjustment via V-belt
• Stable sliding table for machining large workpieces without assistance (optional)
• Aluminum parts (cutting carriage, guides, etc.) anodized
• Large gray cast iron milling block tiltable from + 5 ° to -45 °
• The tilting of the cutter backwards has several advantages: optimal use of an automatic feeder, maximum safety and clean machining

Technical characteristics of the Bernardo T800F 4-speed tilting spindle moulder:

• Table dimensions: 1000 x 360 mm
• Dimensions cutting carriage: 1000 x 240 mm
• Sliding table dimensions (optional): 600 x 410 mm
• Working height: 895 mm
• Shaft diameter: 30 mm
• Tilting spindle: + 5 ° to -45 °
• Adjustable spindle height: 100 mm
• Maximum tool height: 100 mm
• Diam. maximum tool diameter: 200 mm
• Diam. max retractable tool height: 180 mm
• Opening in the table: 200 mm
• Spindle speed: 1800/3000/6000/9000 rpm
• ø suction nozzle: 100 mm
• Continuous power S1 100%: 2.8 kW (3.8 hp)
• Power S6 40%: 3.9 kW (5.3 hp)
• Voltage: 400V
• Machine dimensions (W x D x H): 1240 x 710 x 1200 mm
• Weight (approx.): 218 kg

The Bernardo T800F 4-speed tilting spindle moulder is delivered with:

• Cutting carriage
• Miter guide with presser
• Digital speed indicator
• Reversal of direction of rotation
• Extension table
• Protection and support device
