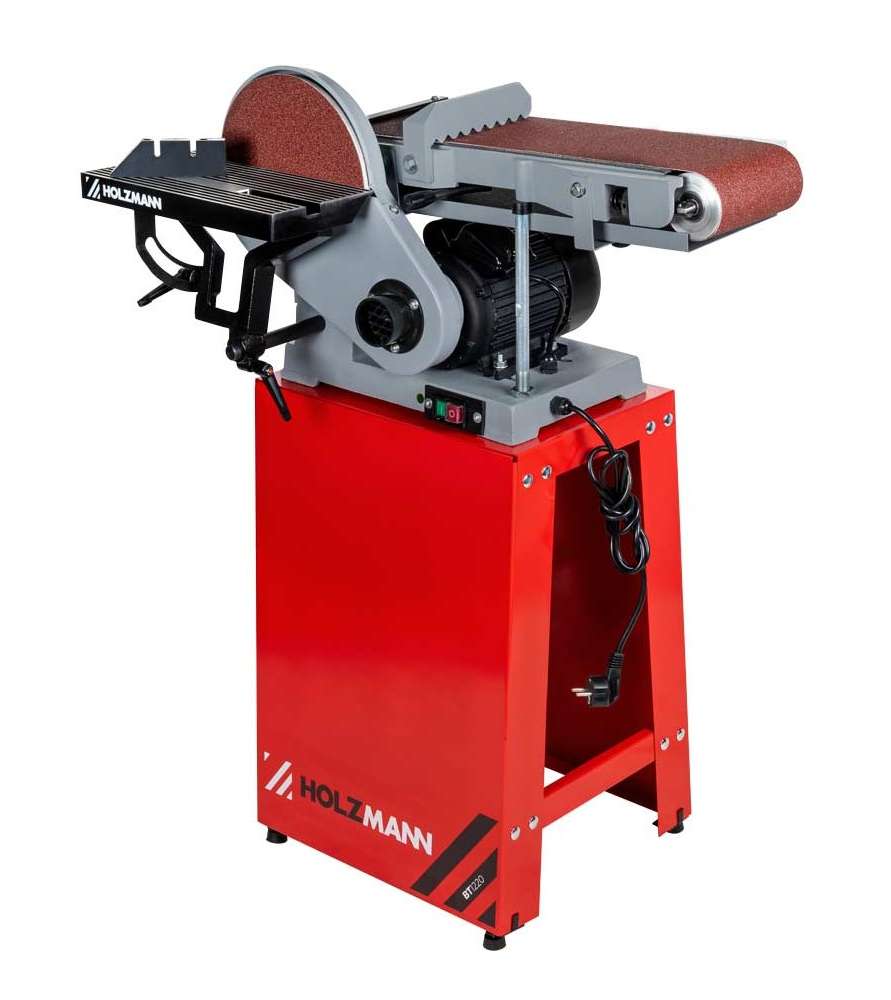

This belt sander is the entry-level workshop sander or stationary sander.

It already offers a good sanding surface thanks to its 1220 mm long belt and its 230 mm disc for a very attractive price.

Advantages of the Holzmann BT1220 belt sander:

• Graphite strip on the sanding support to increase the sliding of the sanding belt.
• Tape parallel running adjustment screw.
• High belt speed for efficient sanding.
• Universal use for sanding edges, surfaces and curves.
• Constant tension of the band thanks to the spring clamping system.
• Quick transition from horizontal to vertical position.
• The disc table can also be used for belt sanding.
• Vibration-free operation thanks to stable, dimensionally stable machine frame.
• Self-adhesive disc support, provide the optional Velcro system

Technical characteristics of the Holzmann BT1220 belt sander:

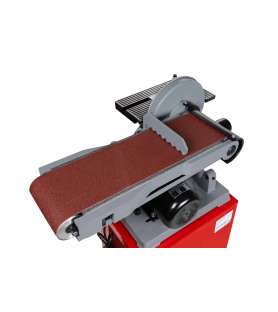

• Sanding belt: 1220 x 150 mm
• Flat sanding surface: 435 x 165 mm
• Adjustable sanding arm: 0° to 90°
• Self-adhesive disc diameter: 230 mm

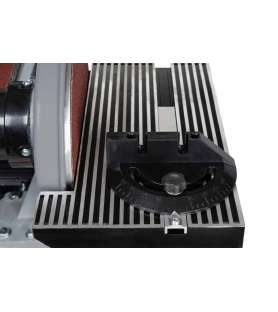

• Disc table: 310 x 155 mm
• Tilting table: 0° to 45°
• Belt speed: 20 m/s
• Idle speed: 1420 rpm
• ø suction nozzle: 2 x 55 mm
• Continuous power S1 100%: 0.75 kW
• Power S6 40%: 1.1kW
• Voltage: 230V
• Machine dimensions (W x D x H): 730 x 500 x 1000 mm
• Weight (approx.): 49 kg

This belt sander comes with these accessories:

• Sanding belt 1220 x 150 mm - grit 80
• Disc diam. 230mm - 80 grit
• miter guide
• stopper
• 50 mm suction nozzle
• Guide for flat sanding surface
• Graphite strip
• Basement
• Service tools

This Holzmann BT1220 sander is the same machine as the Bernardo BDSM230C to see by clicking here: Bernardo BDSM230C!

Important Probois recommendation for many woodworking machines:

Before starting, always check the inside of your machine, see if the belts are fitted correctly, tighten the bolts, etc... because the various transports cause vibrations.

Always use a 2.5² wire size extension cord

The extension cord must not exceed 10 meters and must not be rolled up

The use of drums, triplets or multi-plugs is PROHIBITED

Have a standard electricity meter with neutral and earth

Always work with a chip extractor for your health and for the guarantee of the machine

Always grease cast iron tables with wood glider

Always work with guards in place

Do not work with blunt or blunt tools as this may damage the internal mechanism.
