General description of the Bernardo SP150PS - 230V surface planer :

• Reduced noise stress (by around 50%) thanks to a standard helical knife planer shaft and up to 20 times longer knife life (thanks to four-times reusable carbide reversible inserts)
• Advantage of reversible carbide inserts: in the event of damage, the individual knives can be replaced or rotated
• Ideal for precision planing boards, cleats and beams etc.
• Carbide knives guarantee crack-free planing results and top-quality surfaces for all types of wood
• Perfectly flat gray cast iron planing tables for precise results
• Long planing tables with ground surface for perfect planing

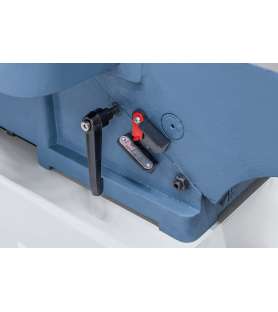

• On/off switch with undervoltage coil

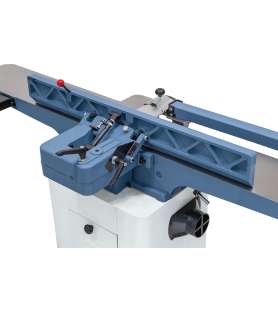

• Stable gray cast iron guide, tiltable from 90° to 45°

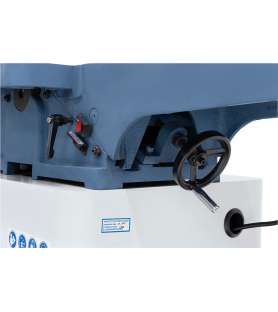

• Simple adjustment of removal by pass, by crank
• Robust structure for vibration-free work

The Bernardo SP150PS - 230V surface planer comes with :

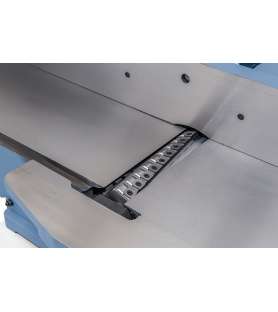

• Helical knife planer arbor with 28 reversible carbide inserts
• Replacement carbide reversible inserts (5 pcs)
• 2x Pusher

Technical characteristics of the Bernardo SP150PS - 230V surface planer :

• Cutting width: 150 mm
• Table length: 1230 mm
• Table height: 820 mm
• Entrance table: 590 mm
• Exit table: 585 mm
• Guide: 740x100 mm
• Carbide reversible inserts: 28
• Shaft diameter: 60 mm
• Shaft speed: 4500 rpm
• Maximum removal per pass: 8 mm
• Ø suction nozzle: 100 mm
• Continuous power S1 100%: 1,1 kW (1,5hp)
• Power S6 40%: 1,5 kW (2.0 hp)
• Voltage: 230V
• Dimensions (LxWxH): 1230 x 530 x 1180 mm
• Weight (approx.): 115 kg
