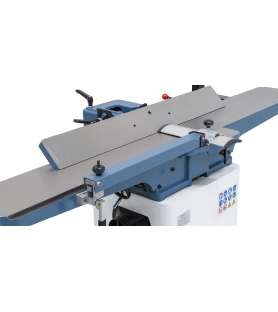

The Bernardo SP200PN - 230V surface planer is ideal for precision planing boards, cleats and beams, etc.

The machine has a robust structure for vibration-free work.

Advantages of the Bernardo SP200PN surface planer :

• HSS iron tree
• Ideal for precision planing boards, cleats and beams etc.
• Perfectly flat gray cast iron planing tables for precise results

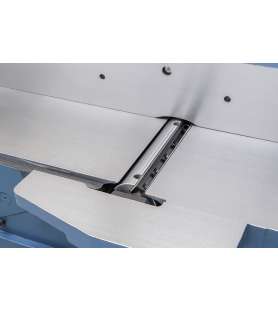

• Long planing tables with ground surface for perfect planing

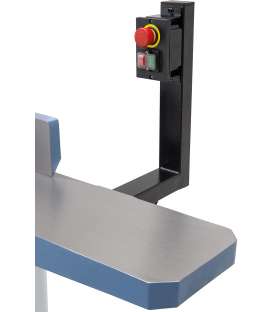

• Lockable on/off switch with undervoltage coil

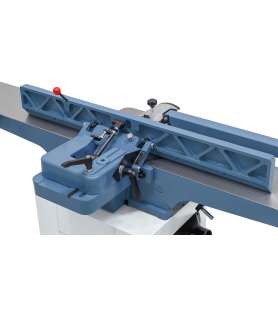

• Stable gray cast iron guide, tiltable from 90° to 45°

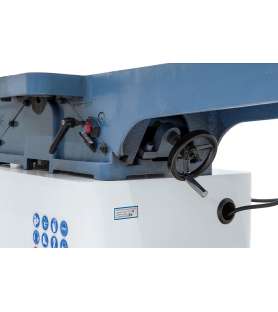

• Simple adjustment of removal by pass, by crank
• Robust structure for vibration-free work

Technical characteristics of the Bernardo SP200PN surface planer :

• Cutting width: 200mm
• Table length: 1805 mm
• Table height: 840 mm
• Entrance table: 880 mm
• Exit table: 880 mm
• Guide: 1020 x 125mm
• Number of irons: 4
• Shaft diameter: 72mm
• Shaft speed: 4800 rpm
• Maximum removal per pass: 8 mm
• Ø suction nozzle: 100 mm
• Continuous power S1 100%: 2.2 kW (3.0 hp)
• Power S6 40%: 3.0 kW (4.0 hp)
• Voltage: 230V
• Dimensions (LxWxH): 1805 x 660 x 1200mm
• Weight (approx.): 181 kg

Delivered with :

• HSS irons
• Iron adjustment jig
• 2 pushers

IMPORTANT FOR DELIVERY AND COMMISSIONING OF XS MACHINES!

XS machines are only shipped by 19 ton truck with tailgate. The place of delivery must imperatively be planned so that this type of truck can approach and maneuver easily. In case of impossible access by this type of truck, the machine must remain at the depot of the carrier close to the customer who will then organize the removal by his own means (trailer, van). If the carrier has the possibility of offering a delivery by smaller truck, the additional costs will be borne by the customer and must be paid before delivery. Start-up: The prices do not include assembly or electrical installation, which must be done by a professional in order to avoid any damage to the motors and electrical circuits of the machine that the warranty cannot cover.
