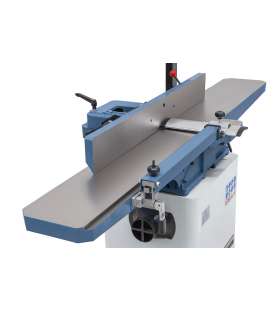

General description of the Bernardo SP200PS - 400V Surface planer :

• Reduced noise stress (by around 50%) thanks to a standard helical knife planer shaft and up to 20 times longer knife life (thanks to four-times reusable carbide reversible inserts)
• Advantage of reversible carbide inserts: in the event of damage, the individual knives can be replaced or rotated
• Ideal for precision planing boards, cleats and beams etc.
• Carbide knives guarantee crack-free planing results and top-quality surfaces for all types of wood
• Perfectly flat gray cast iron planing tables for precise results
• Long planing tables with ground surface for perfect planing
• On/off switch with undervoltage coil
• Stable gray cast iron guide, tiltable from 90° to 45°
• Simple adjustment of removal by pass, by crank
• Robust structure for vibration-free work

The Bernardo SP200PS - 400V Surface planer comes with:

• Helical knife planer arbor with 36 reversible carbide inserts
• Replacement carbide reversible inserts (5 pcs)
• 2x Pusher

Technical characteristics of the Bernardo SP200PS - 400V Surface planer :

• Cutting width: 200mm
• Table length: 1805 mm
• Table height: 840 mm
• Entrance table: 880 mm
• Exit table: 880 mm
• Guide: 1020 x 125mm
• Carbide reversible inserts: 36
• Shaft diameter: 72mm
• Shaft speed: 4800 rpm
• Maximum removal per pass: 8 mm
• Ø suction nozzle: 100 mm
• Continuous power S1 100%: 2.2 kW (3.0 hp)
• Power S6 40%: 3.0 kW (4.0 hp)
• Voltage: 400V
• Dimensions (LxWxH): 1805 x 660 x 1200mm
• Weight (approx.): 181 kg
