Spindle moulder Leman LOTDE040
  • Spindle moulder Leman LOTDE040
  • Spindle moulder Leman LOTDE040

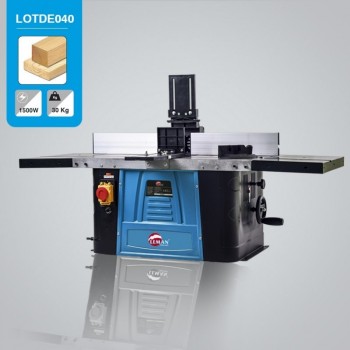

Table router Leman LOTDE040

335.00 € Tax included

Including €2.50 for ecotax

Reference: LE-LOTDE040

The Leman LOTDE040 router is a milling table designed for making moldings, grooves, rabbets and wood assemblies.

Quantity
In stock, delivery time 5-8 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The Leman LOTDE040 table router allows you to work safely with router bits!

A power-driven router is a machine sometimes difficult to use, the work on the fly can be dangerous with a very fast machine in rotation.
This router table will remove all fears, as a router it has a table, a guide and a tree protector. Like a conventional router it is equipped with a speed variator and thanks to its different clamps provided, the range of router bits in tail of 6, 8 and 12 mm is adaptable.

You'll understand, it's an entry-level machine, for the individual who likes to "tinker", not for a professional or a connoisseur who of course will turn to a real top in order to have perfect precision.

It has a powerful 1500 watt motor and offers a height adjustment from 0.1 to 40 millimeters. Its speed is adjustable in 6 positions for a perfect adaptation to the type of work to be done.

Technical specifications of the Leman LOTDE040 table router:

  • Dimensions (LxWxH): 1030 x 670 x 550 mm
  • Variator: Yes
  • 6 Speed ​​of rotation from 11500 to 24000 rev / min
  • Dimensions of the cast iron table (LxW): 610 x 360 mm
  • Dimensions of table extensions in mechanics (LxW): 2 x 410 x 360 mm
  • Overall dimensions of the worktable: 1030 x 360 mm
  • 5 collets: 6 - 6,35 - 8 - 12 - 12,7 mm
  • Well diameter: 80 mm
  • Maximum diameter of the wick: 55 mm
  • Adjustment height from 0.1 to 40 mm
  • Working height: 315 mm
  • Dimensions of the guide (LxH): 700 x 75 mm
  • Engine 1500W - 230V
  • Suction outlet: 100 mm
  • Weight: 32 kg
  • 1 year warranty

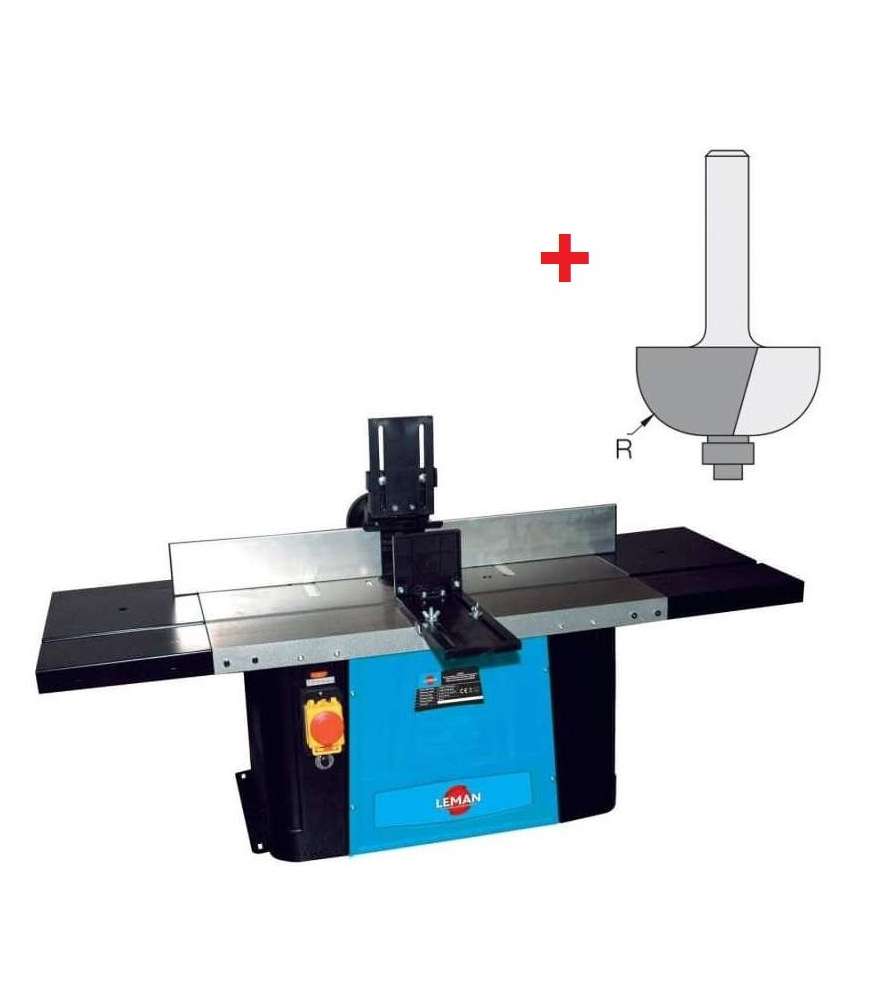

The Leman LOTDE040 tabletop router comes complete with: guards, 5 collets (Ø 6 - 6.35 - 8 - 12 - 12.7 mm), miter gauge, packing rings, pusher, keys, instructions for use

Information: This machine is identical to the Scheppach HF50 model.
