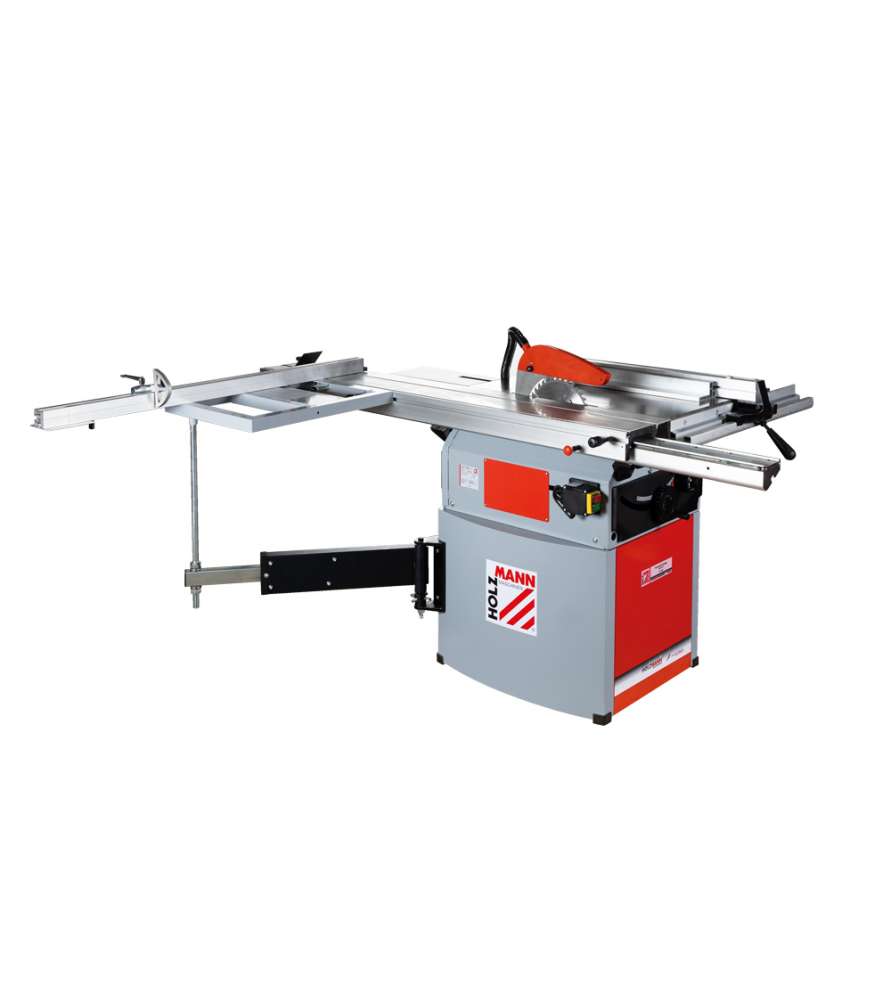

This Holzmann TS250F Sliding table saw has a large 1650 mm carriage!

This carriage is made of aluminum with steel ball bearings!

The advantages of the Holzmann TS250F Sliding table saw :

• Frame and motor housing cover in welded mechanics.
• Saw table in cast steel with right extension and output in welded mechanics.
• Asynchronous motor of 2100 Watts, durable and silent.
• Aluminum rip fence with micrometric adjustment, and eccentric clamping handle.
• Rip stop for cutting lengths or panels.
• Large carriage table with graduated ruler extendable from 1230 to 2260 mm with retractable stop.
• Cleaning hatch on the motor housing cover, allowing the evacuation of sawdust and annoying wood scraps.
• Blade adjustable in height and tiltable up to 45° to the right.

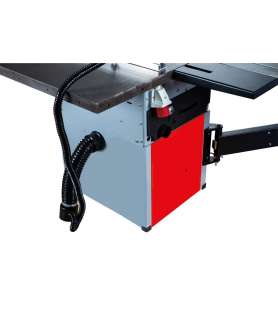

• Suction outlet on the blade cover D.30mm, connected to the collector by flexible hose (provided).

The machine is delivered with :

Guide, the side carriage, the ripping stop, a carbide blade, the table extensions, the pusher, the keys and instructions for use.

Important recommendation from Probois for many woodworking machines :

• Before starting up, always check the inside of your machine, see if the belts are correctly placed, tighten the bolts, etc... because the various transports cause vibrations.
• Always use an extension cord with a wire thickness of 2.5²
• The extension cord must not exceed 10 meters and must not be coiled
• The use of a reel, triplets or multi-socket is PROHIBITED
• Have a standard electric meter with neutral and earth
• Always work with a chip vacuum cleaner for your health and for the machine warranty
• Always work with the protections in place
• Do not work with dull or blunt tools, this can damage the internal mechanism.

Technical characteristics of the Holzmann TS250F Sliding table saw with 1650 mm carriage :

• 230V or 400V motor power: 2100 W - 2.9CV
• Dimensions (L x W x H): 2260 x 2070 x 1160 mm
• Rotation speed: 4000 rpm
• Blade diameter: 250 mm
• Blade bore: 30 mm
• Blade tilt: from 0 to 45° to the right
• Maximum cutting height: 83 mm
• Cutting height at 45°: 59 mm
• Suction outlet: Diam.100 mm
• Table dimensions (LxW): 800 x 670 mm
• Cartridge dimensions (LxW): 1650 x 250 mm
• Cartridge table dimensions (LxW) : 600 x 410 mm
• Carriage travel: 1250 mm
• Max. ripping width: 620 mm
• Net weight: 203 kg
• Packaging (mm): 1030 x 950 x 760
• Gross weight: 214 kg
