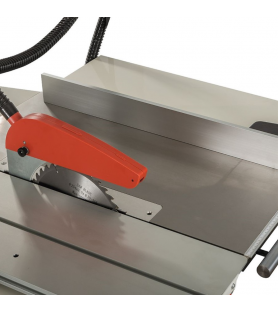

The 1st stationary machine in the range, its mechanically welded frame and its 800x350 cast iron table give the JET JTS-600X Sliding table saw stability and robustness.
Advantages of the JET JTS-600X Sliding table saw :
Its sliding carriage, on bearings, offers flexibility of use.
Added to the trolley, the 460x600 table support and the graduated ruler make it possible to wedge wooden panels up to 2200 mm.
The JET JTS-600X Sliding table saw comes with:
User Manual
Exploded view
Supplied with a Ø250 blade
Safety push button
Service keys
Technical characteristics of the JET JTS-600X Sliding table saw :
Motor power: 400V/1.5kW
Blade Rotation Speed (rpm) 4000
Blade diameter 250mm
Bore Blade Ø 30mm
Blade tilt 0° - 45°
Cutting capacities (90°/45°) 80mm / 54mm
Cutting width (mm) 610
Dimensions table (mm) 800 x 350
Rear extension dimensions (mm) 415 x 350
Right extension dimensions (mm) 800 x 270
Dimensions Mobile Trolley 1000 x 255
Max Cutting Length (mm) 610
Scoring Rotation Speed (rpm) -
Scoring dimensions (outside Ø / Bore) -
Overall Dimensions 1400 x 2200 x 1100
Weight 145 kg
JET-JTS600X-400V
