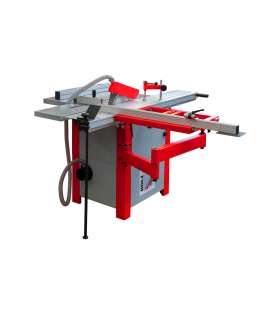

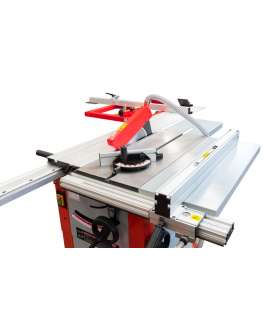

The Holzmann TS250F-1600 Sliding table saw for formatting is a precision machine!

This machine is equipped with a 1600 mm aluminum carriage flush with the blade.

The advantages of the Holzmann TS250F Sliding table saw :

• Frame and motor housing cladding in mechanically welded.
• Saw table in cast steel with right extension and output in mechanically welded.
• 2200 Watt asynchronous motor, durable and silent.
• 1600 x 250 mm aluminum saw carriage with sliding on steel balls.
• Aluminum rip fence with micrometric adjustment, and eccentric clamping handle.
• Rip stop for cutting lengths or panels.
• Large carriage table with graduated ruler extendable from 1200 to 2200 mm with retractable stop.
• Cleaning hatch on the engine housing cover, allowing the removal of sawdust and annoying wood scraps.
• Blade adjustable in height and tiltable up to 45° to the right.

The machine is delivered with : Guide, side carriage, ripping stop, a carbide blade, table extensions, pusher, keys and user manual.

Important recommendation from Probois for many woodworking machines :

• Before starting up, always check the inside of your machine, see if the belts are correctly placed, tighten the bolts, etc. because the various transports cause vibrations.
• Always use an extension cord with a wire thickness of 2.5²
• The extension cord must not exceed 10 meters and must not be coiled
• The use of a reel, triplets or multi-socket is PROHIBITED
• Have a standard electric meter with neutral and earth
• Always work with a chip vacuum cleaner for your health and for the machine warranty
• Always work with the protections in place
• Do not work with dull or blunt tools, this can damage the internal mechanism.

Technical characteristics of the Holzmann TS250F-1600 Sliding table saw :

• 400V motor power: 2200 W - 3.1 HP
• Rotation speed: 3600 rpm
• Blade diameter: 250 mm
• Blade bore: 30 mm
• Blade tilt: 0 to 45° to the right
• Maximum cutting height: 80 mm
• Cutting height at 45°: 60 mm
• Suction outlet: Diam.100 mm
• Extension dimensions: 300x760mm - 280x400mm
• Carriage dimensions (LxW): 1600 x 238 mm
• Carriage table dimensions (LxW): 760 x 350 mm
• Maximum cutting capacity: 1400 mm
• Blade to guide cutting capacity: 590 mm
• Net weight: 155 kg
