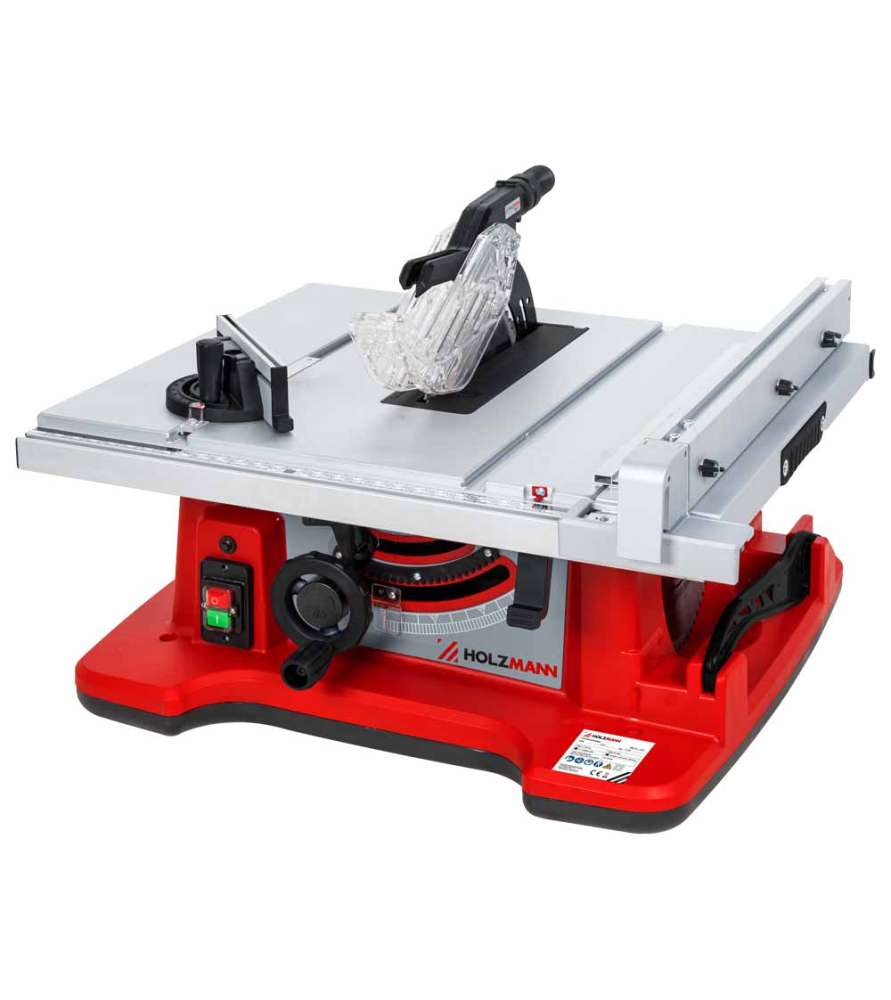

HOLZMANN TK255 DIY CIRCULAR SAW: PERFECT FOR SMALL JOBS AND PORTABLE!

• Circular saw equipped with a powerful 2000W motor and 4800 rpm.
• 254 mm tilting blade (0º-45º) with a cutting capacity of 80 mm at 90º.
• 940 x 642 mm aluminum table.
• Handwheel for blade height and tilt adjustment. 40 mm diameter suction nozzle

Motor data :

• S1 motor power W: 1800
• Voltage: 230V 50Hz
• Shaft speed min-1: 4800
• S6 motor power W: 2200 S6 (20%)
• Protection class: II

Dimensions

• Table dimensions (mm): 675-1040 x 560
• Suction nozzle: 40 mm
• Table height (mm): 310
• Machine dimensions (mm): 675-1040 x 750 x 460

Cutting capacity

• Maximum cutting depth at 90° (mm): 80
• Maximum cutting depth at 45° (mm): 50
• Cutting capacity (blade to guide): max. 650

Circular Saw

• Blade Diameter / Bore mm: Ø254xØ30x2.8
• Sound Power Level - Vibration
• Sound power level in dB: 92.6
• Sound pressure level in dB: 105.6

Weight

• Gross weight (kg): 34
• Net weight (kg): 32

The Holzmann TK255 circular saw comes with : Ø254 mm blade, 60 teeth, angle guide, safety push stick and parallel guide with magnifying glass, protective hood with suction hose.
