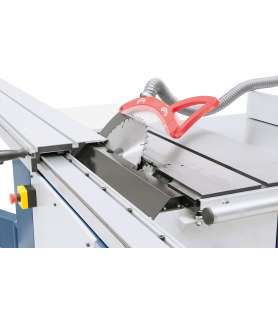

General description of the Sliding table saw Bernardo Basic 3200 PRO :

• Very stable sliding table for large, heavy panels
• Extendable telescopic guide (up to 2260 mm), usable at the front or rear of the sliding table
• Powerful motor guaranteeing optimal cutting even in prolonged operation
• Miter guide and blank holder movable along the entire length of the carriage
• Standard with table extensions for long workpieces
• Stable sawing unit for precise, vibration-free work
• Aluminum sliding trolley with hardened guide rails
• Machine frame in steel and gray cast iron, non-deformable
• Large, perfectly flat and rectified gray cast iron table
• Folding parallel guide with micrometric adjustment (practical for large plates)
• Tilt of the saw blade up to 45° by crank with graduation

The Sliding table saw Bernardo Basic 3200 PRO comes with :

• Carbide blade 315 x 3.0 x 30 mm / 40 teeth
• Scorer 90 x 20 mm / 12 teeth
• Blade protection with suction nozzle
• Flexible with stem
• Miter guide with eccentric flange
• Miter Guide
• Pantograph support
• Table extension
• Side table extension
• Telescopic guide
• Longitudinal guide with fine adjustment
• Sliding roller table
• Pusher
• Service tools

Technical characteristics of the Sliding table saw Bernardo Basic 3200 PRO :

• Table dimensions: 800 x 385 mm
• Cutting carriage: 3200 x 270 mm
• Sliding table travel: 3300 mm
• Diam. max blade: 315 x 30 mm
• Maximum cutting height at 90°/45°: 100/80 mm
• Cutting width with parallel guide: 1200 mm
• Table height: 860 mm
• Table extension: 500 x 310 mm
• Side table extension: 800 x 880 mm
• Sliding roller table: 935 x 580 mm
• Blade rotation speed: 4000 rpm
• Inciser rotation speed: 5800 rpm
• Inciser: 90 x 20 mm
• Ø suction nozzle: 100 mm
• S1 100% continuous power: 3.8 kW (5.1 PS)
• S6 40% power: 5.3 KW (7.2 PS)
• Voltage: 400 V
• Machine dimensions (L x D x H): 3200 x 2990 x 1140 mm
• Weight (approx.): 312 kg

IMPORTANT FOR DELIVERY AND START-UP OF XL MACHINES!

XL machines are only shipped by 38 ton truck. The delivery location must be planned so that this type of truck can approach and maneuver easily. If access is only possible by 19 ton truck (at least), you must inform us in advance so that a solution can be found. If this results in additional delivery charges, they must be paid before shipping. Getting started: The prices do not include assembly or electrical installation which must be done by a professional in order to avoid any damage to the motors and electrical circuits of the machine that the warranty cannot cover.
