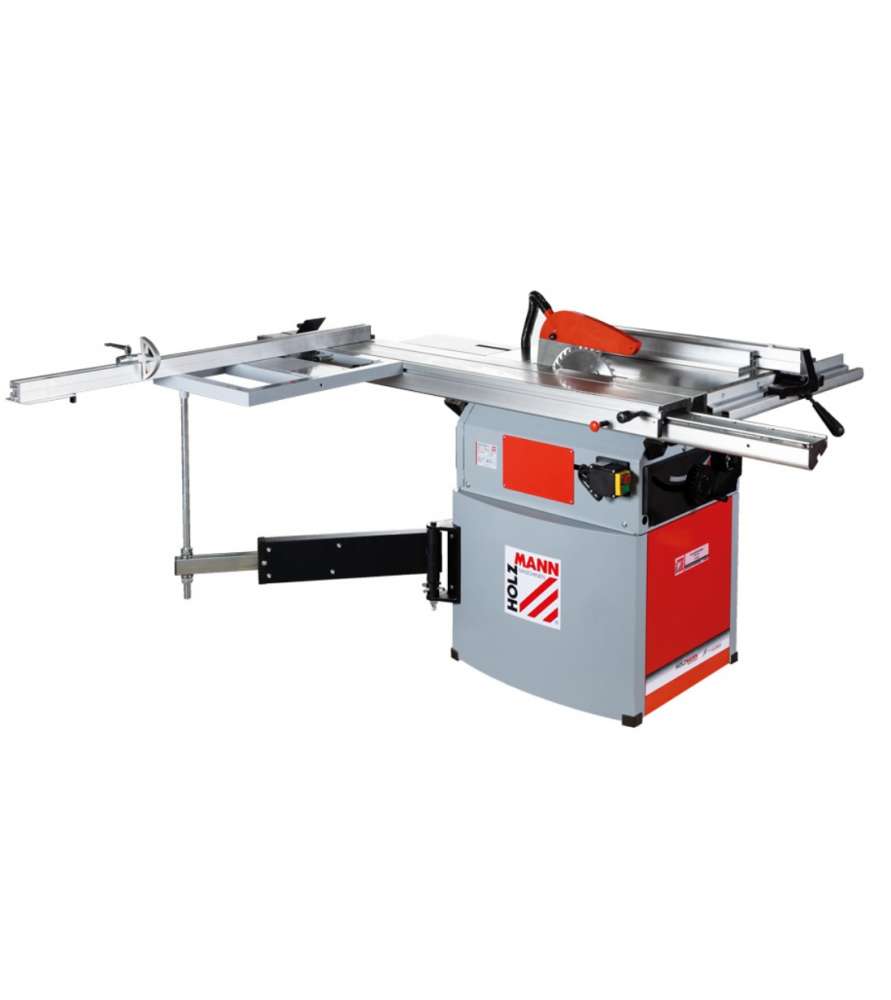

This Sliding table saw Holzmann TS250F has a large 1650 mm trolley!

This cart is made of aluminum with sliding on steel balls!

The advantages of the Sliding table saw Holzmann TS250F :

• Frame and casing of the motor housing in mechanically welded.
• Cast iron sawing table with straight and output extension in mechanically welded.
• Asynchronous motor of 2100 Watts, enduring and silent.
• Aluminum rip fence with micrometric adjustment and eccentric clamping handle.
• Cutting edge for cutting lengths or boards.
• Large table of the trolley with extensible scale from 1230 to 2260 mm with retractable stop.
• Cleaning hatch on the crankcase cover, to remove any troublesome sawdust and wood chips.
• Adjustable blade height and tilt up to 45 ° right.
• Suction outlet on the D.30mm blade cover, connected to the hose manifold (supplied).

The machine ships with:

Guide, side cart, edger, carbide blade, table extensions, pusher, keys and instruction manual.

Important recommendation from Probois for many woodworking machines :

• Before starting, always check the inside of your machine, see if the belts are correctly placed, tighten the bolts, etc. because the various transports cause vibrations.
• Always use an extension cord with a 2.5² wire thickness
• The extension cord must not exceed 10 meters and must not be coiled
• The use of a reel, triplets or multi-socket is PROHIBITED
• Have a standard electric meter with neutral and earth
• Always work with a chip vacuum cleaner for your health and for the machine warranty
• Always work with the protections in place
• Do not work with blunt or dull tools, this can damage the internal mechanism.

Specifications of the Sliding table saw Holzmann TS250F - 230V :

• Engine power 230V or 400V: 2100 W - 2,9CV
• Overall dimensions (L x W x H): 2260 x 2070 x 1160 mm
• Speed ​​of rotation: 4000 rpm
• Blade diameter: 250 mm
• Bore of the blade: 30 mm
• Inclination of the blade: from 0 to 45 ° to the right
• Cutting height Max: 83 mm
• Cutting height at 45 °: 59 mm
• Suction outlet: Diam.100 mm
• Table dimensions (LxW): 800 x 670 mm
• Dimensions of the truck (LxW): 1650 x 250 mm
• Dimensions of the trolley table (LxW): 600 x 410 mm
• Carriage stroke: 1250 mm
• Max edging width: 620 mm
• Net weight: 203 kg
• Packing (mm): 1030 x 950 x 760
• Gross weight: 214 kg
