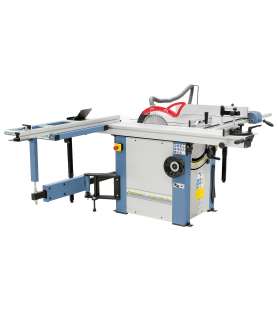

General description of the Sliding table saw Bernardo Basic 2000 PRO :

• Aluminum sliding trolley with hardened guide rails
• Very stable sliding table for large, heavy panels
• Standard with table extensions for long workpieces
• Miter guide and blank holder movable along the entire length of the carriage
• Stable sawing unit for precise, vibration-free work
• Machine frame in steel and gray cast iron, non-deformable
• Extendable telescopic guide (up to 2260 mm), usable at the front or rear of the sliding table
• Folding parallel guide with micrometric adjustment (practical for large plates)
• Tilt of the saw blade up to 45° by crank with graduation
• Powerful motor guaranteeing optimal cutting even in prolonged operation
• Large, perfectly flat and rectified gray cast iron table

The Sliding table saw Bernardo Basic 2000 PRO comes with :

• Carbide blade 315 x 3.0 x 30 mm / 40 teeth
• Scorer 90 x 20 mm / Z12
• Blade protection with suction nozzle
• Flexible with stem
• Miter guide with eccentric flange
• Miter Guide
• Pantograph support
• Table extension
• Side table extension
• Telescopic guide
• Longitudinal guide with fine adjustment
• Sliding roller table
• Pusher
• Service tools

Technical characteristics of the Sliding table saw Bernardo Basic 2000 PRO :

• Table dimensions: 800 x 380 mm
• Cutting carriage: 2000 x 270 mm
• Sliding table travel: 2000 mm
• Diam. max blade: 315 x 30 mm
• Maximum cutting height at 90° / 45°: 100 / 80 mm
• Cutting width with parallel guide: 1200 mm
• Table height: 850 mm
• Table extension: 500 x 310 mm
• Side table extension: 800 x 880 mm
• Sliding roller table: 750 x 580 mm
• Blade rotation speed: 4500 rpm
• Scoring rotation speed: 8500 rpm
• Scoring: 2-100 x 20 mm
• ø suction nozzle: 100 mm
• S1 100% continuous power: 3.8 kW (5.1 hp)
• S6 40% power: 5.3 kW (7.2 hp)
• Voltage: 400 V
• Machine dimensions (L x D x H): 2000 x 2800 x 1100 mm
• Weight (approx.): 298 kg
