The Holzmann TS315VF Sliding table saw has a large 2000 mm blade-level carriage with telescopic ruler!

It offers a cutting height of 100 mm. The scoring saw ensures chip-free work in delicate panels to be machined. The cast iron tables ensure perfect stability. Equipped with rear and side extensions and a support foot for working with large wooden panels.

The advantages of the Holzmann TS315VF Sliding table saw :

• The scoring saw placed in front of the blade makes it easier to cut melamine panels and prevents surface coatings from chipping.
• The side table extensions increase the cutting capacity and hold large panels.
• The angle guide has stops at 90 and 45 °.

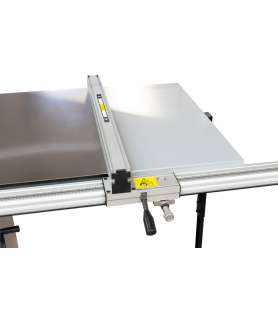

• The parallel guide is easily locked by a single lever and is equipped with a micrometric screw adjustment.
• The flush blade carriage also includes an angle guide that slides into the slot of the carriage and locks in this position.
• 1 presser blocks the parts resting on the table.
• The aluminum profile support guide adjusts according to the cutting angle and includes an extension up to 2200 m/m.
• The motor unit is perfectly held in a tilting cast iron frame and increases working precision.
• The carriage extension is equipped with a roller to easily maneuver long parts.

Supplied with : 315 mm carbide blade, 40 teeth - scoring saw, eccentric presser, precision miter guide, extensions, etc.

Important recommendation from Probois for many woodworking machines :

• Before starting up, always check the inside of your machine, see if the belts are correctly positioned, tighten the bolts, etc. because the various transports cause vibrations.
• Always use an extension cord with a wire thickness of 2.5²
• The extension cord must not exceed 10 meters and must not be coiled
• The use of a reel, triplets or multi-socket is PROHIBITED
• Have a standard electric meter with neutral and earth
• Always work with a chip vacuum cleaner for your health and for the machine warranty
• Always work with the protections in place
• Do not work with dull or blunt tools, this can damage the internal mechanism.

Technical characteristics of the Holzmann TS315VF Sliding table saw :

• Rotation speed 4000 RPM
• Rotation speed of the scoring blade: 5800 RPM
• Blade diameter: 315 mm
• Blade bore: 30 mm
• Scoring blade diameter: 90 mm
• Scoring blade bore: 20 mm
• Cutting capacity 90 º: 100 mm
• Cutting capacity 45 º: 80 mm
• Carriage stroke: 2000 mm
• Capacity between guide and blade: 1250 mm
• Suction nozzle diameter: 100 mm
• Dimensions: 2000 x 2800 x 1200 mm
• Weight: 260 Kg
• 230V motor power:
• S1 100% = 3.0 KW (4 HP) S2 40% = 4.2 KW (5.7 HP)
