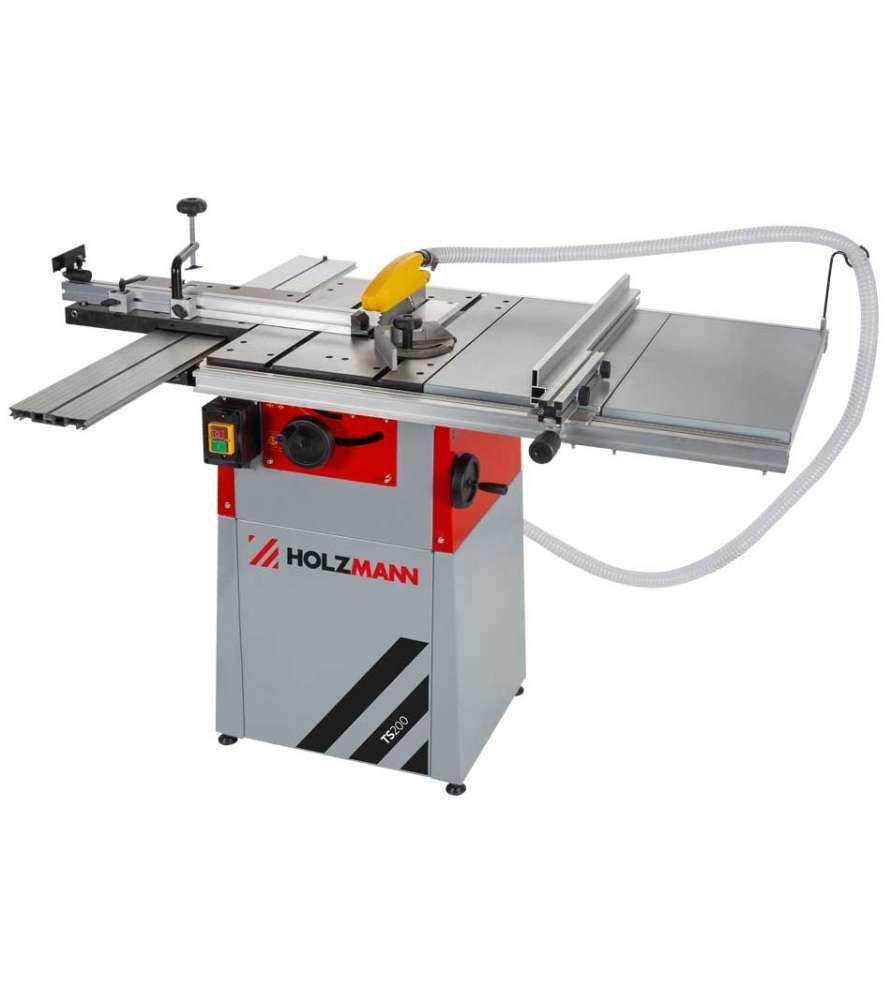

The Holzmann TS200 table circular saw is a precise cast iron machine

Perfect for DIYers and hobbyists looking for precision at a lower cost. This model is offered on a frame allowing to precisely rest the upper part above and thus to install an optional displacement kit.

The advantages of the Holzmann TS200 table circular saw :

• Engine power: 1100 W - 1.5 HP
• Frame and casing of the motor housing in Mecano-Welded.
• Cast iron sawing table with welded output extension.
• 1.5 HP asynchronous motor, enduring and quiet.
• Blade sawing trolley in aluminum with sliding on steel balls.
• Aluminum rip fence with micrometric adjustment and knurled grips.
• Cutting edge for cutting lengths or boards.
• Respectable trolley table with graduated ruler and extendable stop 755.
• Adjustable blade height and tilt up to 45 ° right.
• 2 suction outlets on the 25 mm diameter blade cover, connected to the 50 mm diameter manifold per hose.

Machine supplied with: Cart, cutting edge, 200 mm carbide blade, keys and operating instructions, table extensions and parallel guide

Important recommendation from Probois for many woodworking machines :

• Before starting, always check the inside of your machine, see if the belts are correctly placed, tighten the bolts, etc. because the various transports cause vibrations.
• Always use an extension cord with a 2.5² wire thickness
• The extension cord must not exceed 10 meters and must not be coiled
• The use of a reel, triplets or multi-socket is PROHIBITED
• Have a standard electric meter with neutral and earth
• Always work with a chip vacuum cleaner for your health and for the machine warranty
• Always work with the protections in place
• Do not work with blunt or dull tools, this can damage the internal mechanism.

Specifications of the Holzmann TS 200 table circular saw :

• Engine power: 1100 W - 1.5 HP
• Overall dimensions (L x W x H): 1610 x 1580 x 960 mm
• Speed ​​of rotation: 4700 rpm
• Diameter of the blade: 200 mm
• Bore of the blade: 30 mm
• Inclination of the blade: from 0 to 45 ° to the right
• Cutting height 90 °: 60 mm
• 45 ° cutting height: 40 mm
• 2 Suction Outputs: diameter 50 mm + diameter 25 mm
• Table dimensions (LxW): 400 x 535 mm
• Dimensions of the table with extension: 1000 x 535 mm
• Dimensions of the truck (LxW): 400 x 250 mm
• Cutting course: 710 mm
• Suction outlet: D. 100 mm
• Voltage: 230V or 400V to choose
• Weight: 75 kg

Sawmill:

• Rail dimensions mm: 400 x 1000
• Dimensions of the tablet mm: 250 x 400
• Running mm: 710

Same machine as the Bernardo TK200RSN.
