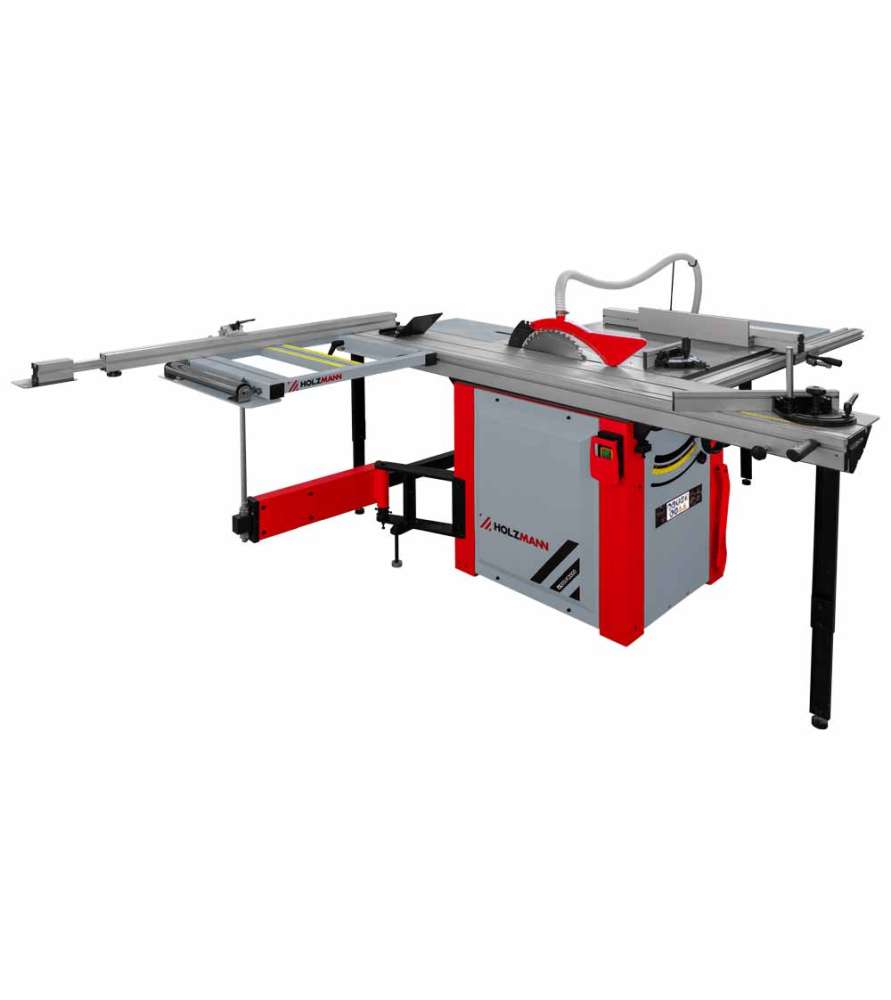

The Sliding table saw Holzmann TS315VF2000 is equipped with a large 2000 mm wide blade-type trolley with telescopic ruler!

It has a cutting height of 100 mm. The scoring machine ensures work without splinters in the delicate panels to be machined. Gray cast iron tables ensure perfect stability. Equipped with rear extension, side and support leg for working large wooden panels.

The advantages of the Sliding table saw Holzmann TS315VF2000 :

• The scorer placed in front of the blade facilitates the cutting of melamine panels and avoids the bursting of surface coatings.
• Side table extensions increase cutting capacity and maintain large panels.

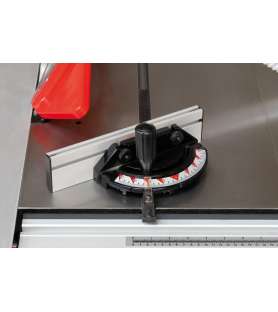

• The corner guide has stops at 90 ° and 45 °.
• The parallel guide is easily locked by a single lever and is equipped with a micrometer screw adjustment.
• The blade carriage also has a corner guide that slides into the slot of the carriage and locks in this position.
• 1 presser blocks the pieces resting on the table.
• The aluminum profile guide adjusts according to the cutting angle and includes an extension up to 2200 m / m.
• The engine block is securely held in a tilting cast iron frame and increases work precision.
• The cart extension is equipped with a roller for easy handling of long pieces.

Comes with: Carbide blade 315 mm, 40 teeth - scoring machine, eccentric presser, precision guide, extensions ...

Important recommendation from Probois for many woodworking machines:

• Before starting, always check the inside of your machine, see if the belts are correctly placed, tighten the bolts, etc. because the various transports cause vibrations.
• Always use an extension cord with a 2.5² wire thickness
• The extension cord must not exceed 10 meters and must not be coiled
• The use of a reel, triplets or multi-socket is PROHIBITED
• Have a standard electric meter with neutral and earth
• Always work with a chip vacuum cleaner for your health and for the machine warranty
• Always work with the protections in place
• Do not work with blunt or dull tools, this can damage the internal mechanism.

Specifications of the Sliding table saw Holzmann TS315VF2000 :

• Speed ​​4000 rpm
• Speed ​​of the scoring machine: 5800 rpm
• Blade diameter: 315 mm
• Bore of the blade: 30 mm
• Scorer diameter: 90 mm
• Boring scorer: 20 mm
• Cutting capacity 90 º: 100 mm
• Cutting capacity 45 º: 80 mm
• Trolley stroke: 2000 mm
• Capacity between guide and blade: 1250 mm
• Diameter of the suction nozzle: 100 mm
• Size: 2000 x 2800 x 1200 mm
• Weight: 260 Kg

400V motor power:

• S1 100% = 3.0 KW (4 HP)
• S2 40% = 4.2 KW (5.7HP)
