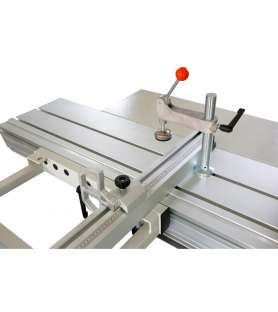

General description of the Holzprofi FPM3200VR sliding table saw :

• The major advantage of this format saw is its very solid design.
• It has an edging carriage allowing easy sliding and high precision.
• The quality workmanship of all elements of the table saw guarantees easy and durable work.
• The care given to the tilting saw group, as well as to the cast iron table, ensure a very precise cut.
• The cast iron saw block guided on both sides guarantees silent work and a quality cut.
• Delivered with 1 blade and 1 scoring saw, this format saw will give you the precision and versatility you deserve.

Technical characteristics of the Holzprofi FPM3200VR sliding table saw:

• Working height: 915mm
• Suction nozzle diameter: 120 + 60 mm
• Dimensions of the cast iron table (LxW): 548 x 896 mm
• Cutting length: 3200 mm
• Cutting width: 1235mm
• Trolley frame (LxW): 640 x 1250 mm
• Max. : 120 / 20mm
• Blade diameter max. : 350mm
• Saw rotation: 4000 rpm
• Scoring rotation: 8000 rpm
• Motor power 400V/50Hz: 5.5Kw/7.5hp
• Blade tilt: 45°
• Max cutting height at 90°: 100 mm
• Max cutting height at 45°: 70 mm
• Scoring motor power: 0.75Kw/1hp
• Weight: 700kg
• Sliding carriage dimensions: 3200 x 360 mm
• Table dimensions with right and rear extensions: 1690 x 1410 mm
• Voltage: 400V

IMPORTANT FOR DELIVERY AND START-UP OF XL MACHINES!

XL machines are only shipped by 38 ton truck. The delivery location must be planned so that this type of truck can approach and maneuver easily. If access is only possible by 19 ton truck (minimum), you must inform us in advance so that a solution can be found. If this results in additional delivery charges, they must be paid before shipping. Getting started: The prices do not include assembly or electrical installation which must be done by a professional in order to avoid any damage to the machine's motors and electrical circuits that the warranty cannot cover.
