Important recommendation from Probois for many woodworking machines :

• Before starting, always check the inside of your machine, see if the belts are correctly placed, tighten the bolts, grease the tables, etc... because the various transports cause vibrations.
• Always use an extension cord with a wire thickness of 2.5²
• The extension cord must not exceed 10 meters and must not be coiled
• The use of a reel, triplets or multiple sockets is PROHIBITED
• Provide an electric meter with special machine start-up fuses of at least 16A
• Have a standard electric meter with neutral and earth
• Always work with a chip vacuum cleaner for your health and for the machine warranty
• Always grease the cast iron tables with wood slide
• Always work with the guards in place
• Do not work with dull or blunt irons, this can damage the mechanism, the feed of the planer, break the belt
• The machine does not start? The chip ejection housing is probably incorrectly positioned on the jointer-planer side, it is a safety feature!

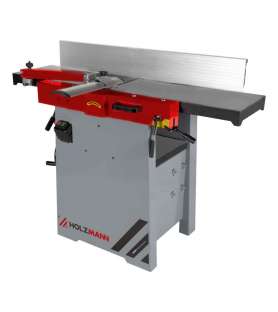

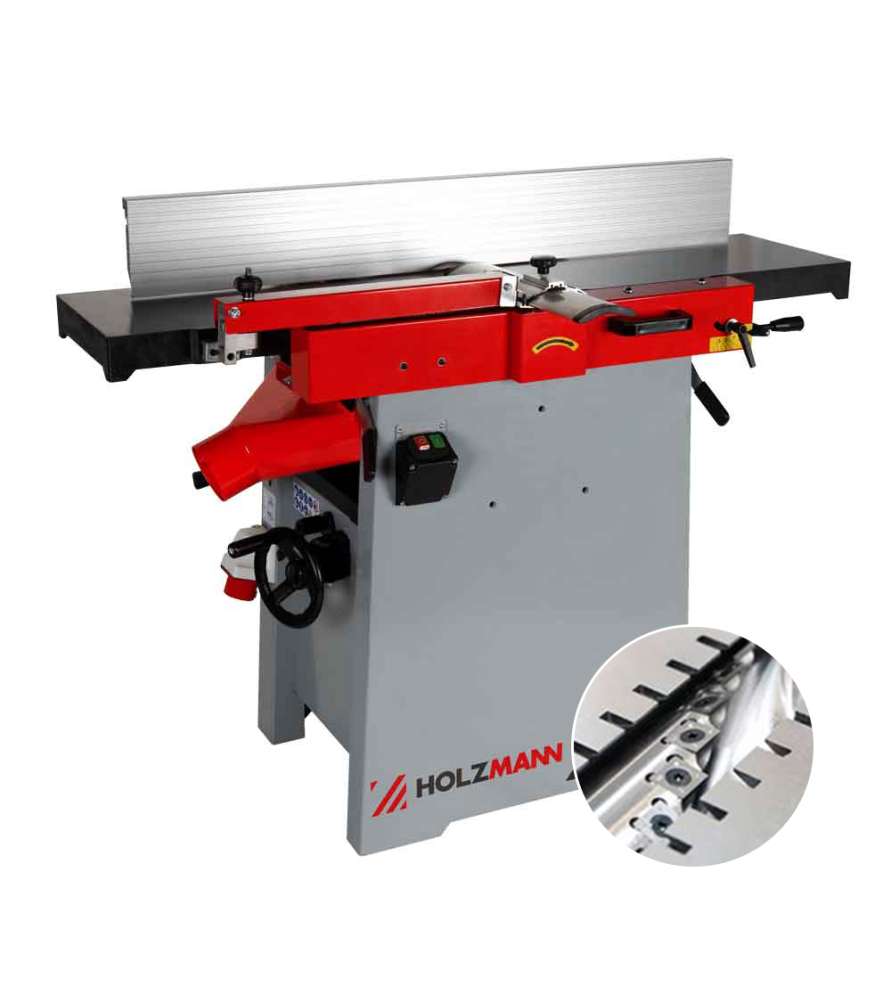

Advantages of the Holzmann HOB310ECOSMW2 planer thicknesser with helical shaft - 400V :

• Smooth central height adjustment of the thicknesser table incl. counter
• precisely bedded spiral cutter block
• spiral toothed infeed roller
• planer fence tiltable
• easy to change over (the entire planer table can be folded up)

The Holzmann HOB310ECOSMW2 planer thicknesser is supplied with :

• planing fence, assembled cutter-inserts sets (15 x 15 x 2,5 mm (30°)) 30pcs.,  +5 pcs cutter-inserts as spare-part
• mounting tool
• sliding wood

Technical specifications of the Holzmann HOB310ECOSMW2 planer thicknesser :

Thicknesser

• planing table size : 1285 x 310 mm
• thicknesser table height : 852 mm
• max. thicknessing cutting depth : 3 mm
• planer fence : 1100 x 150 mm
• fence tilt : 0 - 45°
• motor power s1 : 2200 W
• voltage : 400V / 50 Hz
• feed speed : 5,5 m/min
• dust collector port :  Ø 100 mm
• total dimensions : 1285 x 750 x 1000 mm

Planer

• table size : 545 x 308 mm
• cutting depth : 4 mm
• thicknessing height : 225 mm
• shaft diameter : Ø 70 mm
• shaft speed : 5500 min-1
• sound power level : 103 dB(A)
• sound pressure level : 89,5 dB(A)
• gross weight : 206 kg
• net weight : 179.50 kg
