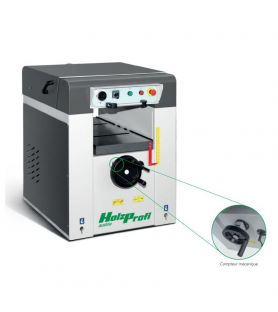

General description of the Planer 410 mm Holzprofi DMS41-HELI :

• Assembly: 30 minutes / 1 person
• This planer has a monobloc table 800 mm long in rectified cast iron as well as a manual mounting on the central shaft of the table with 4 fixing points.
• Planing height 225mm
• Delivered with mounted and sharpened irons.
• European manufacturing!

Technical characteristics of the Planer 410 mm Holzprofi DMS41-HELI :

• Shaft Ø: 100 mm
• Shaft rotation speed: 4,500 rpm
• Chip grip: 5
• Motor power 400v / 50 hz: 3kw / 4hp S1 100%
• Ø suction nozzle: 160 mm
• Machining width: 410 mm
• Planing table length: 800 mm
• Minimum – maximum planing height: 4 – 225 mm
• Wood feed speed: 8
• Drive rollers: 1 grooved / 1 full steel
• Anti-friction roller in the table: 2
• Cast iron table dimensions (L x W x H): 398 x 400 mm
• Table rise: Manual
• Height reading: Mechanical counter
• Mechanical indicator for reading planing height: yes, to 1/10th
• Weight: 425 Kg
• Dimensions (L x W x H): 1310 x 1060 x 1250 mm
