From its conception, the DH 410S planer with helical insert shaft has been designed to offer maximum safety and stability in a compact and user-friendly design. This model also has a digital display for precise adjustment of the table height.
General description of the Bernardo DH410S planer:
Reduced noise stress (approx. 50%) with standard helical knife planer shaft and up to 20x longer knife life (thanks to reversible carbide inserts that can be reused four times)
Advantage of reversible carbide inserts: in the event of damage, the individual knives can be replaced or rotated
Planing table on central column and support for precise planing
Carbide knives guarantee crack-free planing results and optimum surfaces for all types of wood
Ground table for workpieces up to 230 mm high
Comes as standard with table extension and integrated rollers
Chain drive for safe and even workpiece feed
Several safety devices: On / off switch with power release, limit switch to prevent accidental starting of the machine, emergency stop point
Technical characteristics of the Bernardo DH410S planer:
Planer width: 410 mm
Min / max planing height: 5 - 230 mm
Planing table dimensions: 930 * x 310 mm
Maximum pass removal: 5 mm
Mini part length: 150 mm
Shaft diameter: 95 mm
Number of reversible carbide inserts: 72
Shaft speed: 4050 rpm
Feed speed: 6 m / min
Ø suction nozzle: 100 mm
S1 continuous power 100%: 3.0 kW (3.0 hp)
Power S6 40%: 4.2 kW (4.0 hp)
Voltage: 400V
Machine dimensions (W x D x H): 1110 x 710 x 1020 mm
Weight (approx.): 239 kg
* With table extension
The Bernardo DH410S planer is delivered with:

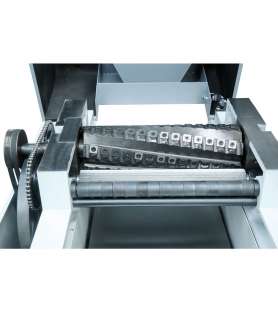

Helical knife plane shaft with 72 reversible carbide inserts
