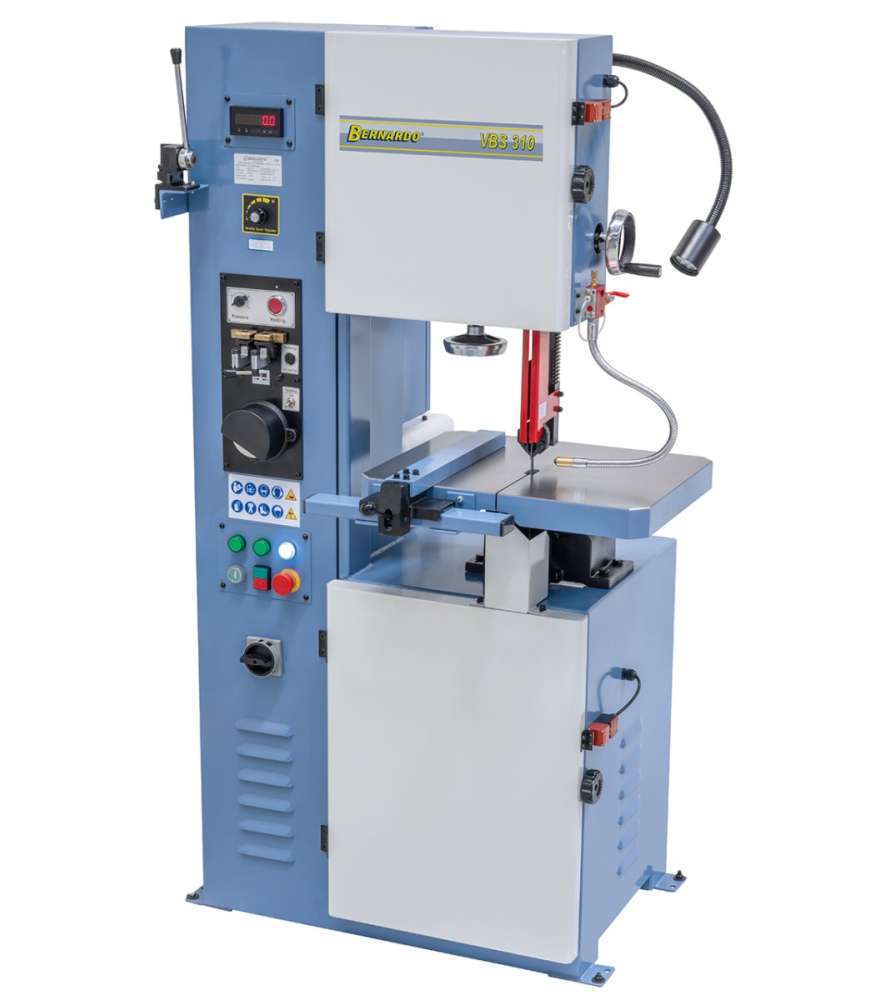

General description of the Bernardo VBS310 vertical band saw :

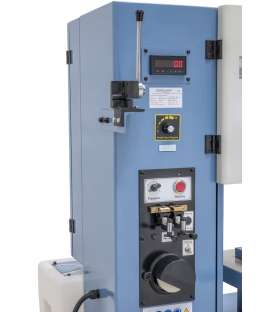

• Standard with LED speed display to set the desired cutting speed

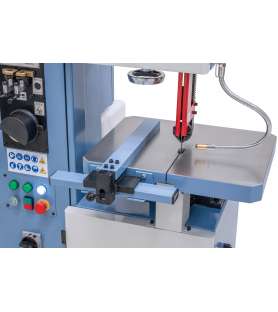

• Solid gray cast iron table, the large support surface ensures safe working
• Standard with strip welding device, annealing device, scissors and grinding wheel
• With continuously adjustable cutting speed as standard
• Robust steel machine body for quiet operation

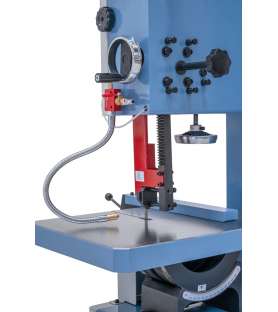

• Precision blade guide for optimal cutting results
• Ideal for sawing complex contours and shapes
• Band saw blades with a width of 3 mm are available for radius sawing

The Bernardo VBS310 vertical band saw comes with :

• band saw blade
• Strip welding device with annealing device
• Work lamp
• Scissors
• Grindstone
• Chip brush

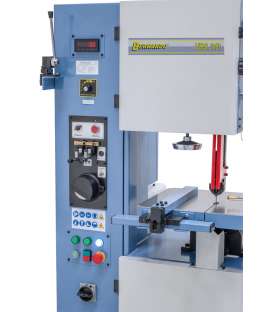

• LED digital display

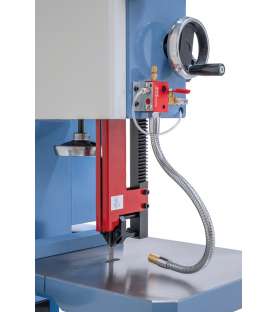

• Micro-spray system

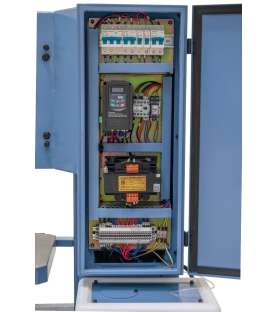

• Frequency converter

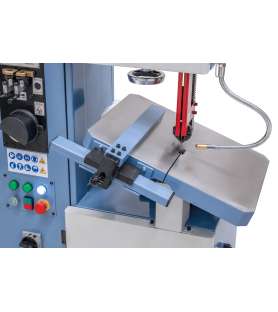

• Longitudinal stop

Technical characteristics of the Bernardo VBS310 vertical band saw :

• Cutting width: 315 mm
• Cutting height: 185 mm
• Working height: 890 mm
• Cutting speed: 10 - 180 m/min
• Ribbon length: 2885 mm
• Mini-maxi tape width: 3 - 16 mm
• Table dimensions: 500 x 400 mm

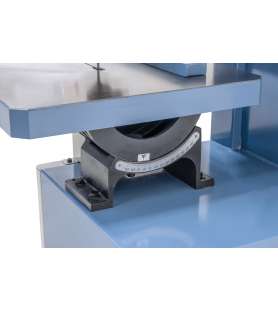

• Table tilt: -15° to +45°
• Motor power: 0.55 kW
• Machine dimensions (L x T x H): 960 x 800 x 1600 mm
• Weight. : 265 kg
