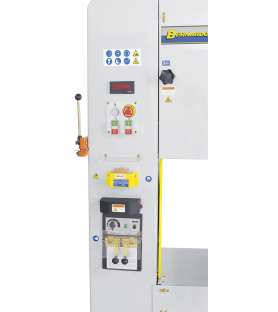

General description of the Bernardo VMS520 vertical band saw :

• Massive gray cast iron table, large surface guaranteeing safe work
• Standard with ribbon welding device, annealing device, shear and sharpening stone
• Standard with cutting speed variator
• Robust steel frame for quiet operation
• Precision blade guide for optimal cutting
• Ideal for complex contours and shapes
• Table tilts 15° in 4 directions
• Blower included with compressor
• Tapes from 3 mm wide for curves

The Bernardo VMS520 vertical band saw comes with :

• Ribbon
• Blade welding unit with annealing
• Halogen lighting
• Chisel
• Deburring wheel
• Chip brush
• Wind tunnel
• Digital LED display
• Table longitudinal groove

Technical characteristics of the Bernardo VMS520 vertical band saw :

• Cutting width: 520 mm
• Cutting height: 310 mm
• Working height: 1000 mm
• Cutting speed stage 1: 25 - 85 m/min
• Cutting speed stage 2: 120 - 500 m/min
• Ribbon length: 3880 mm
• Ribbon width: 3 - 16 mm
• Table dimensions: 600 x 500 mm
• Table tilt range (in all 4 directions): 15°
• Motor power: 1.5 kW
• Blade welding unit: 2.4 kVA
• Machine dimensions (L x D x H): 1300 x 760 x 2140 mm
• Weight (approx.): 500 kg
