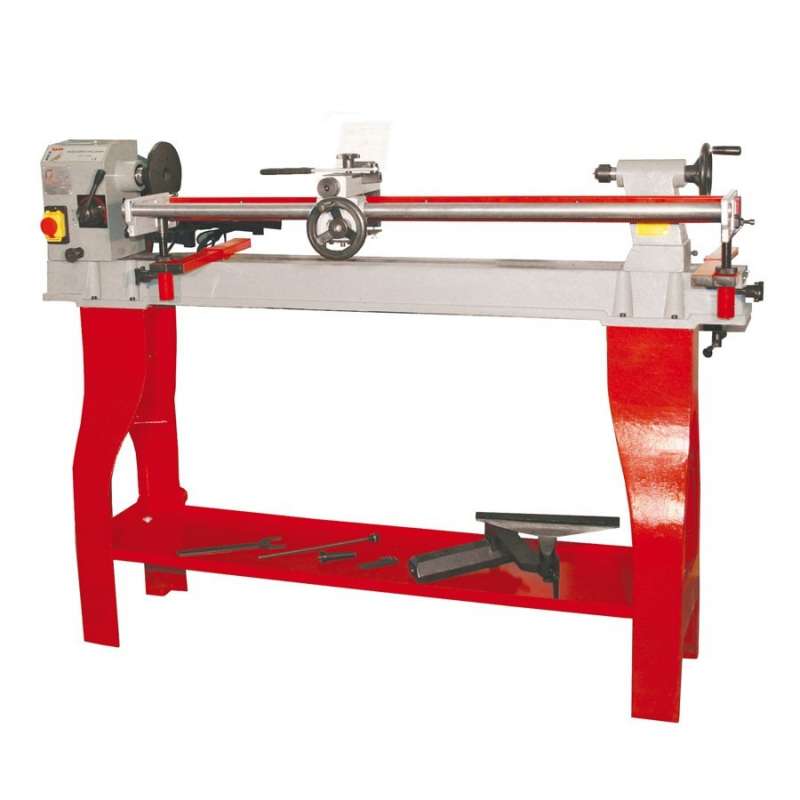

Wood lathe with Copier Holzmann VD1100N
  • Wood lathe with Copier Holzmann VD1100N
  • Wood lathe with Copier Holzmann VD1100N
  • Wood lathe with Copier Holzmann VD1100N - 230V
  • Wood lathe with Copier Holzmann VD1100N

Wood lathe with Copier Holzmann VD1100N - 400V

1,075.00 € Tax included

Including €2.50 for ecotax

Reference: HVD1100N-400V

The Holzmann VD1100N wood lathe has a cast iron frame that provides good rigidity and stability while absorbing vibrations.

Quantity
Factory Shipping, delivery time 7-10 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The Holzmann VD1100N wood lathe is equipped with a mechanical speed variator!

It allows you to vary the speed continuously from 500 to 2000 rpm.

Advantages of the Holzmann VD1100N wood lathe:

  • Its very rigid traditional cast iron frame gives it a very high stability and a very comfortable working. The cast iron absorbs perfectly all the vibrations.
  • Variable speed from 500 to 2000 rpm.
  • Its large capacities make it possible to work pieces up to 1100 mm long and 355 mm in diameter.
  • Its powerful 1100 W motor, equipped with 10 speeds of 500 to 2000 rpm, is perfectly suited to all jobs.
  • The rotating and sliding head allows working large pieces such as trays, plates, containers.
  • The wide tool holder is perfectly designed to support the tools and is easy to handle.
  • The cast iron base makes it possible to work at the right height without vibration.

This wood lathe comes with:

1 cast iron base, 1 screw plate (Ø 150), 1 feed dog, 1 tool holder, 1 tailstock and 1 copier

Holzmann VD1100N wood lathe specifications:

  • Motor: 750 W - 400V
  • Absorbed power: 1 CV
  • 10 speeds of 500 to 2000 rpm: speeds 500, 620, 760, 900, 1050, 1210, 1400, 1590, 1790, 2000 rpm.
  • Capacities Between-points: 1100 mm
  • Diameter above the bench: 355 mm
  • Pin hole: 9.5 mm
  • Race of the mobile doll: 57 mm
  • Inner cone of fixed and mobile doll: Walrus No. 2
  • Weight: 130 kg without the copier

On this model, front support is optional.

HVD1100N-400V
