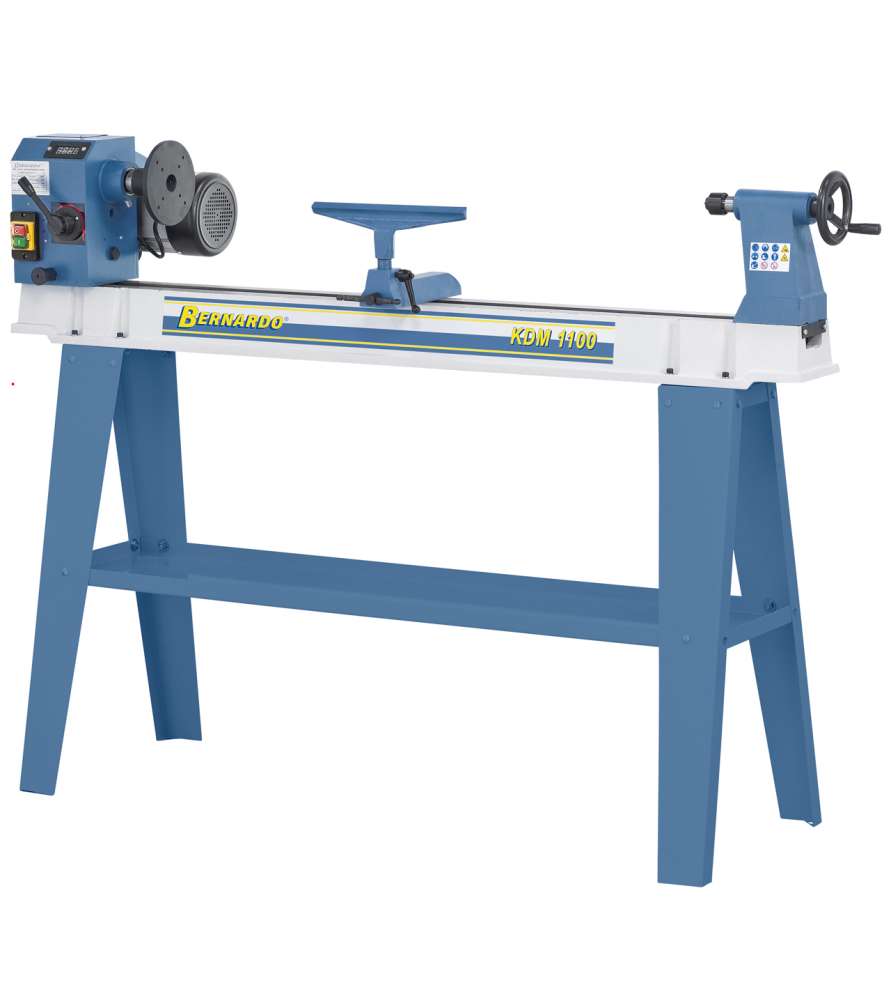

This Bernardo KDM1100 wood lathe with copier can turn large pieces!
It gives access to the turning of large pieces (table legs, stair balusters, etc.) and allows to obtain remarkable results thanks to its variator, ideal for working on a spindle, small and large diameter parts.
Advantages of the KDM1100 wood lathe:

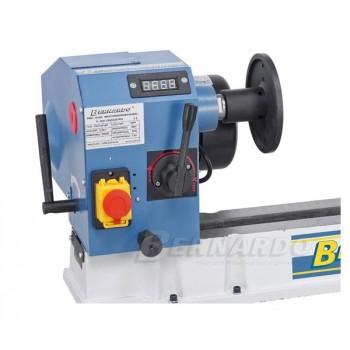

- Spindle head positionable at 180 °
- Distance between points 1,050 mm
- Height of the point above the bench 175 mm
- Bench height 910 mm
- Standard equipment:
- Tool holder 300 mm
- Stable, stable cast steel construction
- Rectified turning bench
- Tray
- Tip of the moving doll
- Training Tip
Technical specifications of Bernardo KDM1100 wood lathe:
- Mobile doll and tool holder made of cast iron
- Tool holder and moving headstock with eccentric clamping
- No head of the M33 spindle
- Cone of MK2 spindle head
- Cone of the MK2 mobile doll
- hollow shaft diam 9 mm
- Run of the tailstock: 55 mm
- 10 spindle speeds: 500/600/750/900 / 1,000 / 1,200 / 1,400 / 1,600 / 1,800 / 2,100 1 / min - A mechanical variator (variomatic type) allows the changeover speeds
- V-belt drive
- Diameter of the piece above the bench diam 355 mm
- Tray diam 150 mm
- 230V - 750 W motor
- CE Certification
- Dimensions: L 1 610 x 1 490 x H 1 175 mm
- Weight approx. 92 kg
